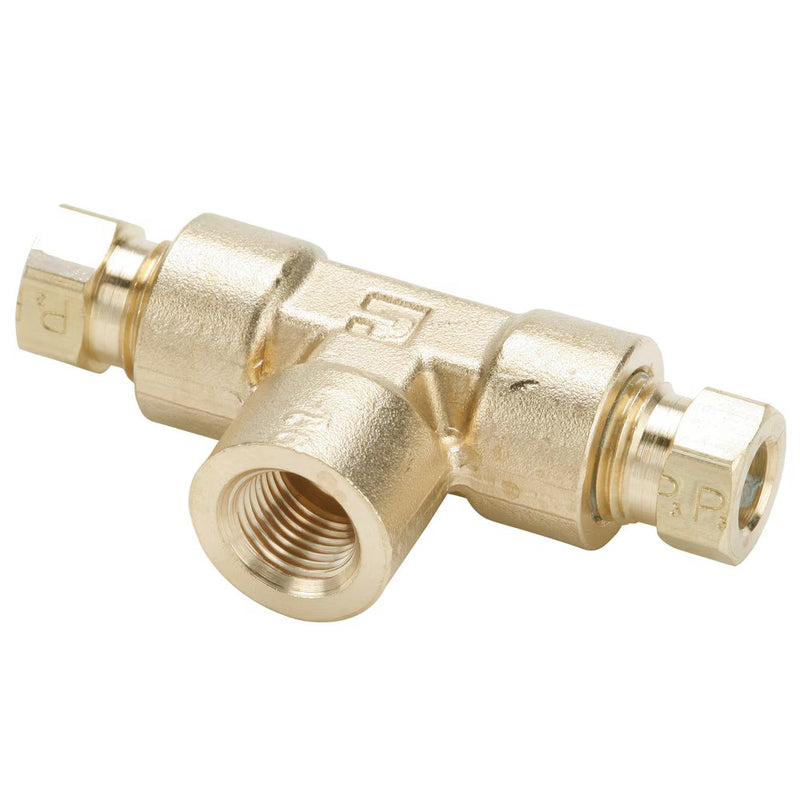

177HD-4-4 by Parker | Hi-Duty Fittings | 1/4" Tube Size x 1/4" Female Pipe Thread | Min. Orifice Size: .187" | .562" Hex | Tee | Brass | Pack of 5

177HD-4-4 by Parker | Hi-Duty Fittings | 1/4" Tube Size x 1/4" Female Pipe Thread | Min. Orifice Size: .187" | .562" Hex | Tee | Brass | Pack of 5

Save $21.51 Save $21.51
$236.60
$236.60 - $236.60
$236.60
$215.09
$215.09 - $215.09
$215.09

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Female Branch Tee 177HD

Package Quantity: 5 Units

Specifications for Variant SKU: 177HD-4-4 Parker | 5 |
Series: 177HD Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade
Product Features:
  • All brass construction
  • Two piece fitting
  • Higher pressure rating
  • Easy assembly
Markets:
  • Mobile
  • Industrial
  • Compressors
  • Lubrication
Applications:
  • Lubrication Lines
  • Coolant Lines
  • Oil Lines
  • Engines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Seamless Steel
  • Thermoplastic Tubing
Part Number Tube Size Pipe Thread Minimum Orifice Size A B Hex (C) D
177HD-4-2 1/4" 1/8" .187" 1.082" .687" .500" .750"
177HD-4-4 1/4" 1/4" .187" 1.144" .750" .562" 1.093"
177HD-6-4 3/8" 1/4" .312" 1.376" .970" .562" 1.093"
