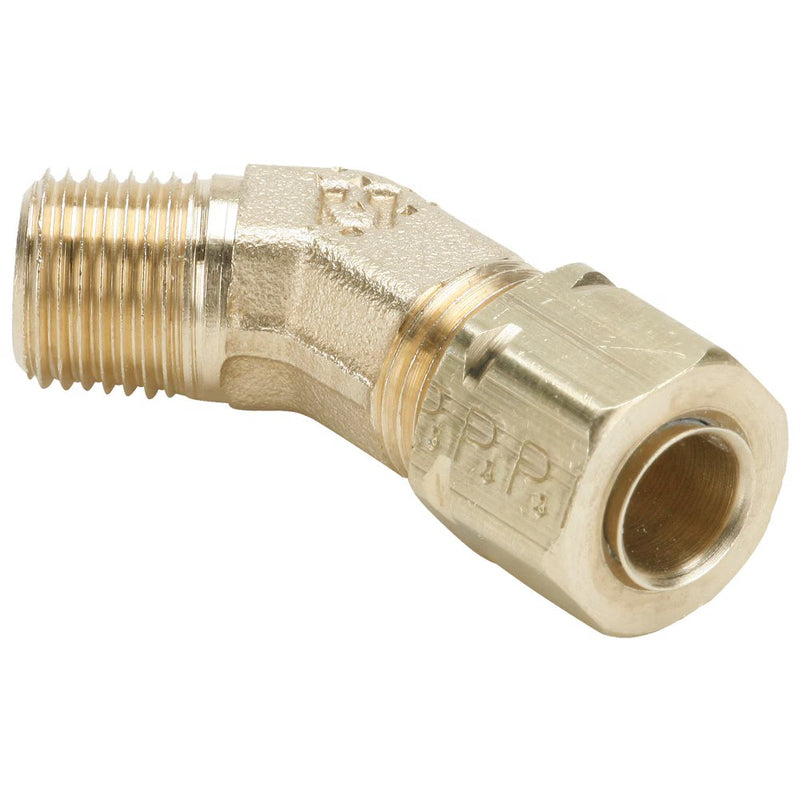

179CA-8-6 by Parker | Compress-Align® Fittings | 1/2" Tube Size x 3/8" Male Pipe Thread x 11/16" Thread | 45° Elbow | Brass | Pack of 10

179CA-8-6 by Parker | Compress-Align® Fittings | 1/2" Tube Size x 3/8" Male Pipe Thread x 11/16" Thread | 45° Elbow | Brass | Pack of 10

Save $151.22 Save $151.22
$378.05
$378.05 - $378.05
$378.05
$226.83
$226.83 - $226.83
$226.83

by Parker Hannifin
Compress-Align® Fittings:45° Elbow 179CA

Package Quantity: 10 Units

Specifications for Variant SKU: 179CA-8-6 Parker | 10 |
Brand: Compress-Align
Series: 179CA
Shape (Orientation): 45° Elbow
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Pipe Thread Straight Thread L M M Flow Diameter (D)
179CA-4-2 1/4" 1/8" 7/16"-24 .89" .66" .56" .188"
179CA-4-4 1/4" 1/4" 7/16"-24 .80" .56" .84" .188"
179CA-6-2 3/8" 1/8" 9/16"-24 .85" .63" .65" .234"
179CA-6-4 3/8" 1/4" 9/16"-24 .85" .63" .84" .312"
179CA-6-6 3/8" 3/8" 9/16"-24 .97" .75" .95" .312"
179CA-8-6 1/2" 3/8" 11/16"-20 1.03" .81" .95" .406"
