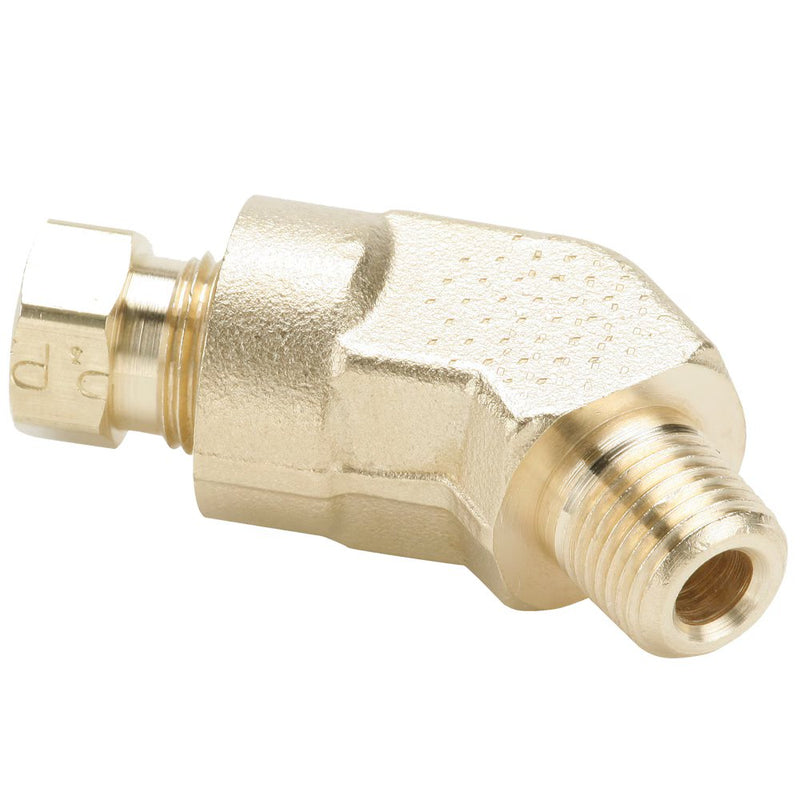

179HD-6-4 by Parker | Hi-Duty Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread | Min. Orifice Size: .280" | .550" Hex | 45° Elbow | Brass | Pack of 5

179HD-6-4 by Parker | Hi-Duty Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread | Min. Orifice Size: .280" | .550" Hex | 45° Elbow | Brass | Pack of 5

Save $133.33 Save $133.33
$333.32
$333.32 - $333.32
$333.32
$199.99
$199.99 - $199.99
$199.99

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:45° Male Elbow 179HD

Package Quantity: 5 Units

Specifications for Variant SKU: 179HD-6-4 Parker | 5 |
Series: 179HD Series
Shape (Orientation): 45° Elbow
Material(s): Brass
Special Properties: Fuel Grade
Product Features:
  • All brass construction
  • Two piece fitting
  • Higher pressure rating
  • Easy assembly
Markets:
  • Mobile
  • Industrial
  • Compressors
  • Lubrication
Applications:
  • Lubrication Lines
  • Coolant Lines
  • Oil Lines
  • Engines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Seamless Steel
  • Thermoplastic Tubing
Part Number Tube Size Pipe Thread Minimum Orifice Size A B Hex (C) D
179HD-4-2 1/4" 1/8" .187" 1.093" .687" .562" .750"
179HD-6-4 3/8" 1/4" .280" 1.138" .710" .550" .850"
