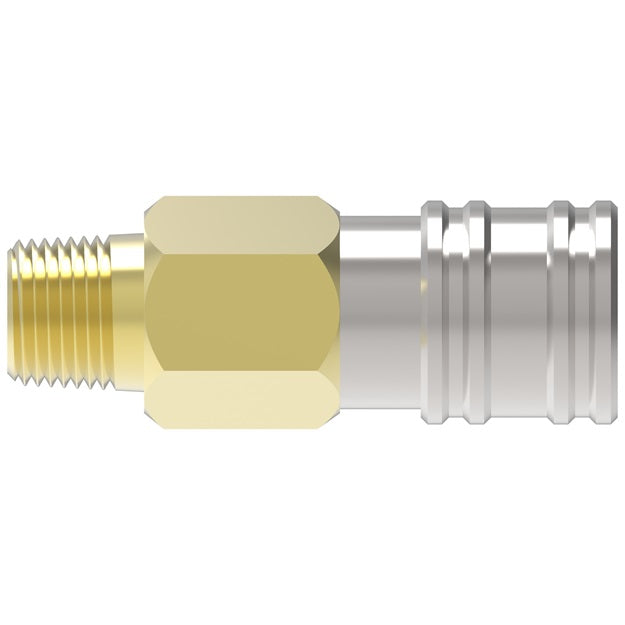

180 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | 1/8" Male NPTF x 1/8" Body Size | Socket | Buna-N Seal | Brass
180 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | 1/8" Male NPTF x 1/8" Body Size | Socket | Buna-N Seal | Brass
180 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | 1/8" Male NPTF x 1/8" Body Size | Socket | Buna-N Seal | Brass
180 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | 1/8" Male NPTF x 1/8" Body Size | Socket | Buna-N Seal | Brass

180 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 180/280 Series | 1/8" Male NPTF x 1/8" Body Size | Socket | Buna-N Seal | Brass

$14.95 - $14.95
$14.95
$14.95 - $14.95
$14.95

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 180/280 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 180/280 series miniature ball lock quick disconnect couplings are designed for use with compressed air, gases and liquids.

Series 180 an 280 sockets/females mate with all Series 180 plugs/males
Specifications for Variant SKU: 180 Danfoss
Brand: Hansen
Series: 180/280 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Series 180 sockets/females have a tire valve.
  • Series 280 sockets/females have a 1HK valve, which provides higher flow capacity.
  • Note: Interchange is proprietary to Danfoss.
Applications & Markets:
  • Recreation and Entertainment
  • Breathing Air
  • General Pneumatics
  • Pharmaceutical
  • Laboratory Uses
  • Medical
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
180 1/8" 48 bar 700 psi 192 bar 2,800 psi 71 lpm 2.5 scfm
280 1/8" 207 bar 3,000 psi 828 bar 1,200 psi 283 lpm 10 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
180/280 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B C
180 Socket/Female 1/8" 1/8" 1/8-27 Male NPTF 1 1.42"
(36.1mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)
28S25M Socket/Female 1/8" 1/4" 1/4-18 Male NPTF 1 1.39"
(35.3mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)
180/280 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B C
185E Plug/Male 1/8" 1/8" 1/8-27 Male NPTF 2 1.16"
(29.5mm)		 0.51"
(13.0mm)		 0.44"
(11.2mm)
186 Plug/Male 1/8" 1/4" 1/4-18 Male NPTF 2 1.44"
(36.6mm)		 0.63"
(16.0mm)		 0.56"
(14.2mm)
