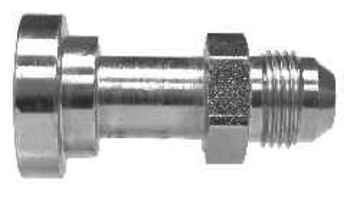

18001620 Midland Hydraulic Code 62 Flange Adapter - 1-5/16-12 Male JIC 37° Flare x 1-1/4" Flange Size - Steel

18001620 by Midland | Hydraulic Flange | 1-5/16-12 Male JIC 37° Flare x 1-1/4" Flange Size | Code 62 | Adapter | Steel

Save $20.82 Save $20.82
$52.05
$52.05 - $52.05
$52.05
$31.23
$31.23 - $31.23
$31.23

Midland Industries
Hydraulic Flang Adapter: Code 62 JIC Flange Adapter - Steel

6000 PSI

Conforms to SAE J518.

Inventory @ Manufacturers Warehouse: 24 Units
Specifications for Variant SKU: 18001620 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 1-1/4in Code 62 Flange
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, SAE J518
Technical Info:
Crossover Series:
6842
Part Number Male JIC 37° Flare Thread
(1)		 Flange Size
(2)
180088 3/4-16 1/2"
18001212 1-1/16-12 3/4"
18001216 1-1/16-12 1"
18001616 1-5/16-12 1"
18001620 1-5/16-12 1-1/4"
18002016 1-5/8-12 1"
18002020 1-5/8-12 1-1/4"
18002024 1-5/8-12 1-1/2"
18002424 1-7/8-12 1-1/2"
18003232 2-1/2-12 2"
18001612 1-5/16-12 3/4"
18001624 1-5/16-12 1-1/2"
18002420 1-7/8-12 1-1/4"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
