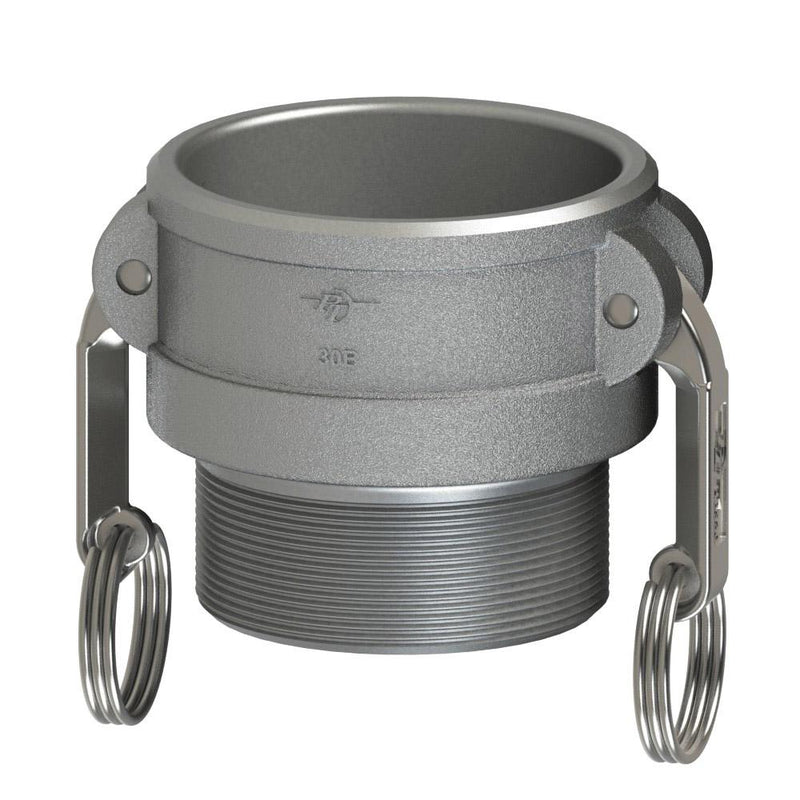

1800250 (50B) by PT-Coupling | Cam & Groove Adapter | Type B | 5" Coupler x 5" Male NPT | Ductile Iron | Buna-N Seal

Save $72.23

$194.58

$194.58 - $194.58

$194.58

$122.35

$122.35 - $122.35

$122.35

PT Coupling
Cam and Groove (Camlock) Adapter | Type B | Coupler x Male NPT Thread | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1800250 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	5in Female Cam & Groove, 5in Male NPT
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature. Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA


Part Name	Item #	Coupler Size	Thread (Male NPT)	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
E05B	1800201	1/2"	1/2"	4.21"	1.82"	2.10"	1.25"	0.56"	1.03"	250 PSI	0.385 lbs.
07B	1800207	3/4"	3/4"	4.51"	2.11"	2.10"	1.25"	0.78"	0.97"	250 PSI	0.505 lbs.
10B	1800210	1"	1"	5.10"	2.44"	2.50"	1.56"	0.97"	1.19"	250 PSI	0.734 lbs.
12B	1800212	1-1/4"	1-1/4"	6.86"	3.26"	2.89"	1.84"	1.25"	1.44"	250 PSI	1.311 lbs.
15B	1800215	1-1/2"	1-1/2"	7.16"	3.56"	2.93"	1.88"	1.50"	1.48"	250 PSI	1.564 lbs.
20B	1800220	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	1.75"	250 PSI	2.065 lbs.
25B	1800225	2-1/2"	2-1/2"	8.03"	4.43"	3.63"	2.18"	2.38"	1.75"	200 PSI	2.66 lbs.
30B	1800230	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	1.84"	200 PSI	4.207 lbs.
40B	1800240	4"	4"	10.66"	6.56"	4.00"	2.34"	3.60"	1.87"	150 PSI	5.962 lbs.
50B	1800250	5"	5"	11.67"	7.57"	4.20"	2.44"	4.50"	1.97"	75 PSI	7.392 lbs.
60B	1800260	6"	6"	16.26"	10.16"	4.52"	2.62"	5.60"	2.19"	75 PSI	11.9 lbs.

**8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
