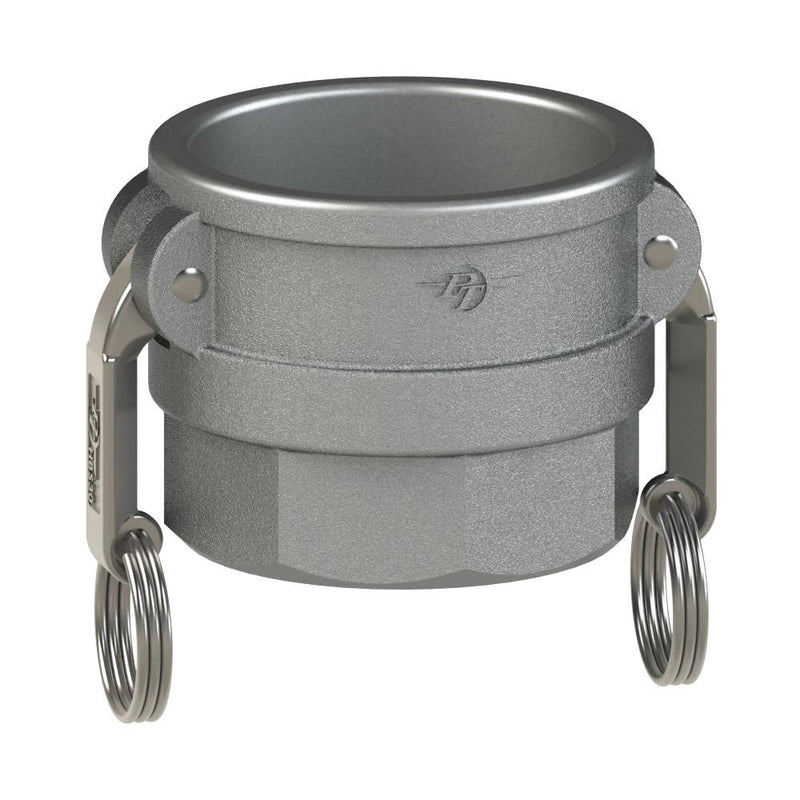

1800450 (50D) by PT-Coupling | Cam & Groove Adapter | Type D | 5" Coupler x 5" Female NPT | Ductile Iron | Buna-N Seal

Save $77.51

$208.82

$208.82 - $208.82

$208.82

$131.31

$131.31 - $131.31

$131.31

PT Coupling
Cam and Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Ductile Iron | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1800450 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	5in Female Cam & Groove, 5in Female NPT
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
8, 10, and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature. Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA


Part Name	Item #	Coupler Size	Thread (Female NPT)	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*
E05D	1800401	1/2"	1/2"	4.21"	1.82"	2.00"	0.67"	1.03"	250 PSI
07D	1800407	3/4"	3/4"	4.51"	2.11"	2.10"	0.88"	0.97"	250 PSI
10D	1800410	1"	1"	5.10"	2.44"	2.50"	0.97"	1.19"	250 PSI
12D	1800412	1-1/4"	1-1/4"	6.86"	3.26"	2.70"	1.25"	1.44"	250 PSI
15D	1800415	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	1.48"	250 PSI
20D	1800420	2"	2"	7.54"	3.94"	3.10"	1.88"	1.75"	250 PSI
25D	1800425	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	1.75"	200 PSI
30D	1800430	3"	3"	9.56"	5.46"	3.50"	2.88"	1.84"	200 PSI
40D	1800440	4"	4"	10.66"	6.56"	3.90"	3.60"	1.87"	150 PSI
50D	1800450	5"	5"	11.67"	7.57"	4.10"	4.50"	1.97"	75 PSI
60D	1800460	6"	6"	16.26"	10.16"	4.40"	5.50"	2.19"	75 PSI
80D	1800480**	8"	8"	18.23"	12.13"	4.80"	7.50"	2.15"	50 PSI

** 8, 10, and 12 inch couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
