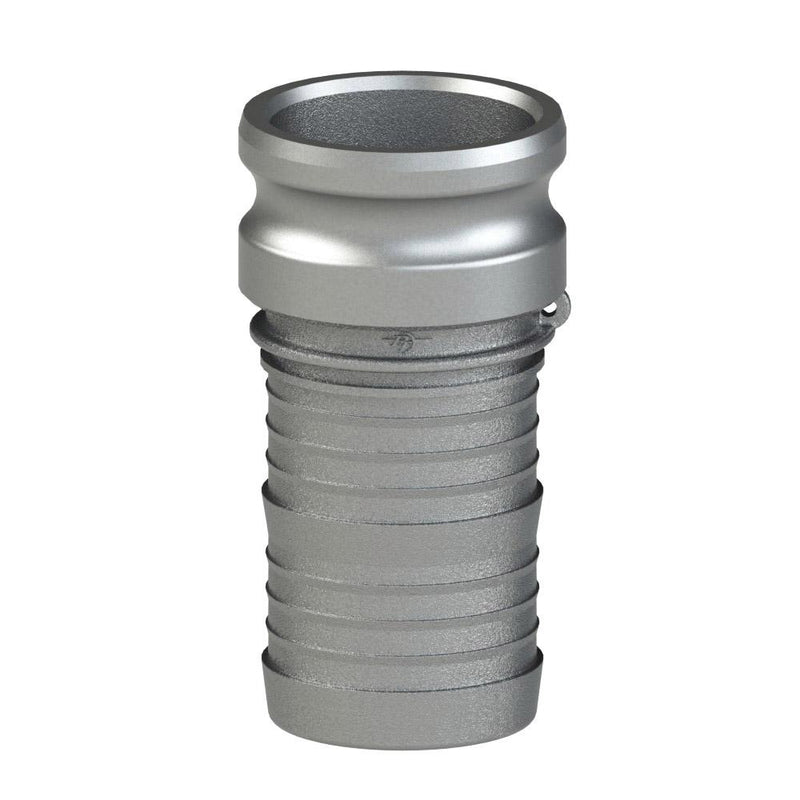

1800507 (07E) by PT-Coupling | Cam & Groove Fitting | Type E | 3/4" Adapter x 3/4" Hose Shank | Ductile Iron

Name: 1800507 (07E) by PT-Coupling | Cam & Groove Fitting | Type E | 3/4" Adapter x 3/4" Hose Shank | Ductile Iron
Brand: PT-Coupling
SKU: 1800507 PT-Coupling
Price: 22.75 USD
Availability: InStock

Save $13.43

$36.18

$36.18 - $36.18

$36.18

$22.75

$22.75 - $22.75

$22.75

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1800507 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	3/4in Male Cam & Groove, 3/4in Hose Barb
Material(s):	Ductile Iron

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve. Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*
07E	1800507	3/4"	3/4"	1.26"	3.78"	1.46"	0.53"	0.97"	250 PSI
10E	1800510	1"	1"	1.63"	4.30"	1.8"	0.88"	1.19"	250 PSI
12E	1800512	1-1/4"	1-1/4"	2.00"	4.90"	2.35"	0.97"	1.44"	250 PSI
15E	1800515	1-1/2"	1-1/2"	2.14"	5.10"	2.15"	1.19"	1.48"	250 PSI
20E	1800520	2"	2"	2.64"	5.75"	2.40"	1.68"	1.75"	250 PSI
25E	1800525	2-1/2"	2-1/2"	3.07"	6.63"	2.47"	2.13"	1.75"	200 PSI
30E	1800530	3"	3"	3.70"	6.88"	2.53"	2.62"	1.84"	200 PSI
40E	1800540	4"	4"	4.71"	7.20"	2.60"	3.50"	1.87"	150 PSI
50E	1800550	5"	5"	6.56"	7.56"	2.81"	4.53"	1.97"	75 PSI
60E	1800560	6"	6"	7.10"	10.10"	3.3"	5.53"	2.19"	75 PSI
80E	1800580	8"	8"	9.10"	10.10"	3.3"	7.53"	2.15"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
