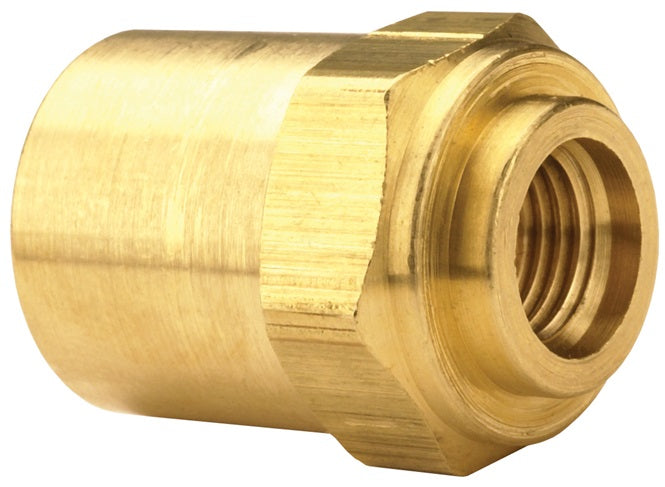

1800612F by Dixon Valve | Reusable Fitting | Ferrule | 3/8" Hose ID | 3/4" Hose OD | Brass

1800612F by Dixon Valve | Reusable Fitting | Ferrule | 3/8" Hose ID | 3/4" Hose OD | Brass

Save $2.36 Save $2.36
$4.67
$4.67 - $4.67
$4.67
$2.31
$2.31 - $2.31
$2.31

Dixon Valve
Reusable Fitting | Ferrule

Reusable fittings are recommended for low pressure air hose applications.
Specifications for Variant SKU: 1800612F Dixon
Series: 180 Series
Shape (Orientation): No Orientation
Material(s): Brass
Features:
  • Durable, easily repaired hose connection.
  • Caution: check hose O.D. and I.D. accurately before ordering.
  • Recommended for use with rubber covered hose only.
  • All re-usable fittings are of heavy duty construction.
  • Reusable fittings offer a more durable hose connection and are easily repaired.
Specifications:
  • Maximum working pressure: 250 PSI at ambient temperature 70°F (21°C).
Safety Notes:
  • Except as specifically noted as to a specific fitting, NO hose fittings manufactured and/or sold by any Dixon® company can be safely used in life dependency applications such as diving, for oxygen, air, or other breathing applications. Dixon fittings are NOT designed and NOT recommended for such use and should NOT BE USED for that purpose. Use of non-approved hose fittings in such applications can result in death or grave personal injuries.
Installation:
  • Simply slip and twist ferrule on end of hose which has been trimmed flush. No skiving necessary.
  • Apply a drop or two of lubricant to fitting before inserting ferrule.
  • Turn reusable fitting into ferrule. Hose is expanded inside ferrule for perfect fit.
Brass
Part Number		 303 Stainless Steel
Part Number		 Hose ID Hose OD
1800408F 1800408FSS 1/4" 1/2"
1800409F 1800409FSS 1/4" 9/16"
1800410F 1800410FSS 1/4" 5/8"
1800509F - 5/16" 9/16"
1800510F - 5/16" 5/8"
1800511F - 5/16" 11/16"
1800610F 1800610FSS 3/8" 5/8"
1800611F 1800611FSS 3/8" 11/16"
1800612F - 3/8" 3/4"
1800814F 1800814FSS 1/2" 7/8"
1800815F 1800815FSS 1/2" 15/16"
1800816F - 1/2" 1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
