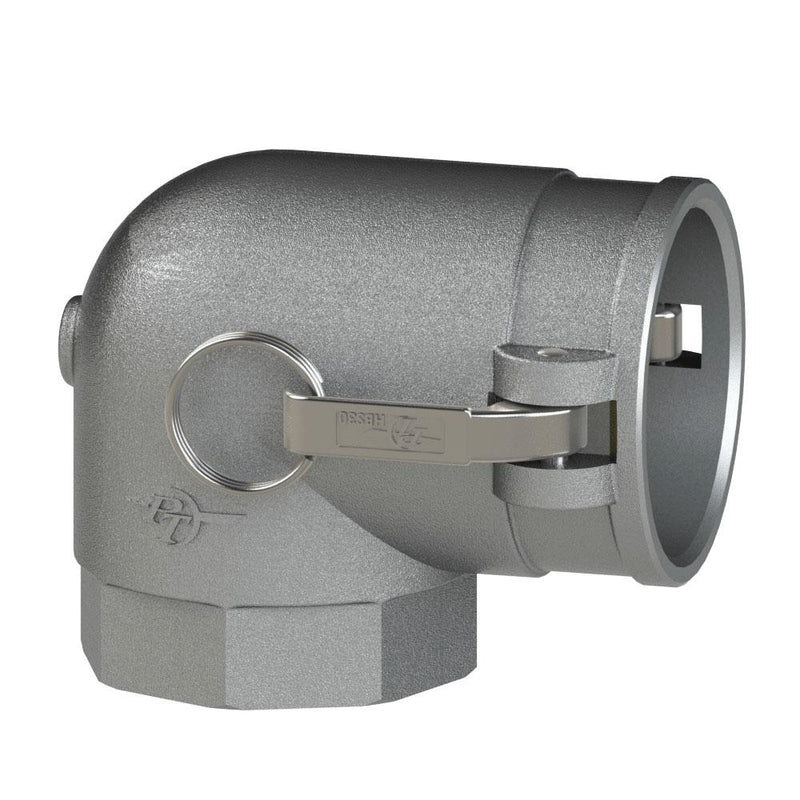

1800730 (30G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 3" Female NPT x 3" Coupler | Ductile Iron | Buna-N Seal

Save $103.47

$278.75

$278.75 - $278.75

$278.75

$175.28

$175.28 - $175.28

$175.28

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1800730 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	3in Female NPT, 3in Female Cam & Groove
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Less than 5 PSI required to start flow in the full flow direction. Made in the USA


Part Name	Item #	Orientation	Female NPT Thread	Coupler Size	Max. Allowable Working Press. (PSI)*
25G	1800725	90°	2-1/2"	2-1/2"	200 PSI
30G	1800730	90°	3"	3"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
