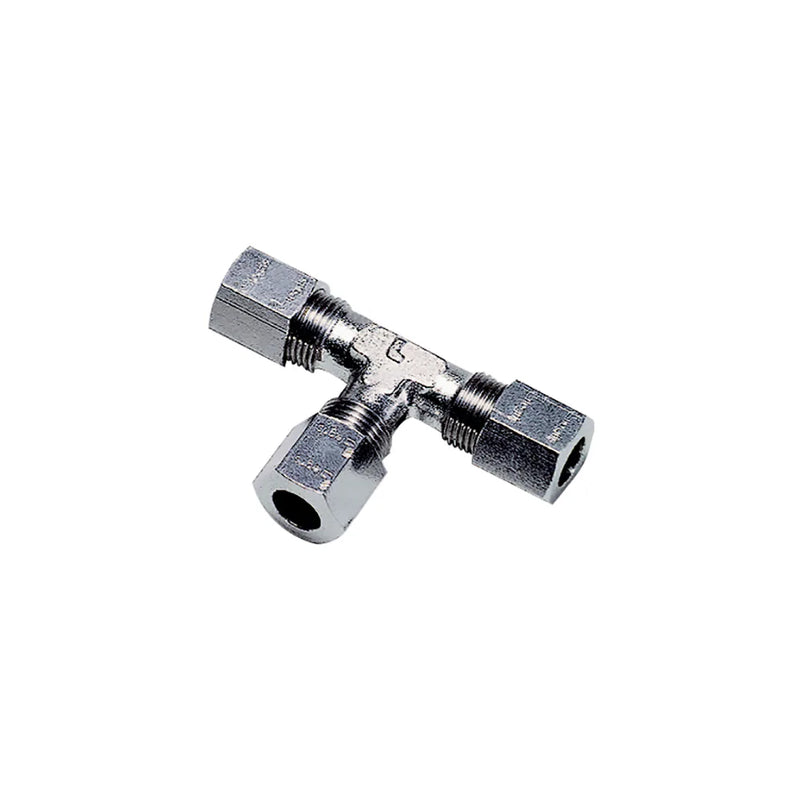

1804 08 00 by Parker | Legris Tube-to-Tube Fitting | 8 mm Equal Tube Size | 14 mm Hex | 57 mm Length | Tee | 316L Stainless Steel | Pack of 2

Save $150.88

$377.20

$377.20 - $377.20

$377.20

$226.32

$226.32 - $226.32

$226.32

by Parker Hannifin
Stainless Steel Compression Fittings / Tube-to-Tube Fittings:1804 Equal Tee

Package Quantity: 2 Units

Specifications for Variant SKU: 1804 08 00 Parker \| 2 \|
Series:	1804 Series
Shape (Orientation):	Tee
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	F	J	L/2	L1	Kg
1804 06 00	6 mm	13 mm	8 mm	25.5 mm	13.5 mm	.039 Kg
1804 08 00	8 mm	14 mm	10 mm	28.5 mm	14.5 mm	.049 Kg
1804 10 00	10 mm	19 mm	12 mm	32.5 mm	16 mm	.100 Kg
