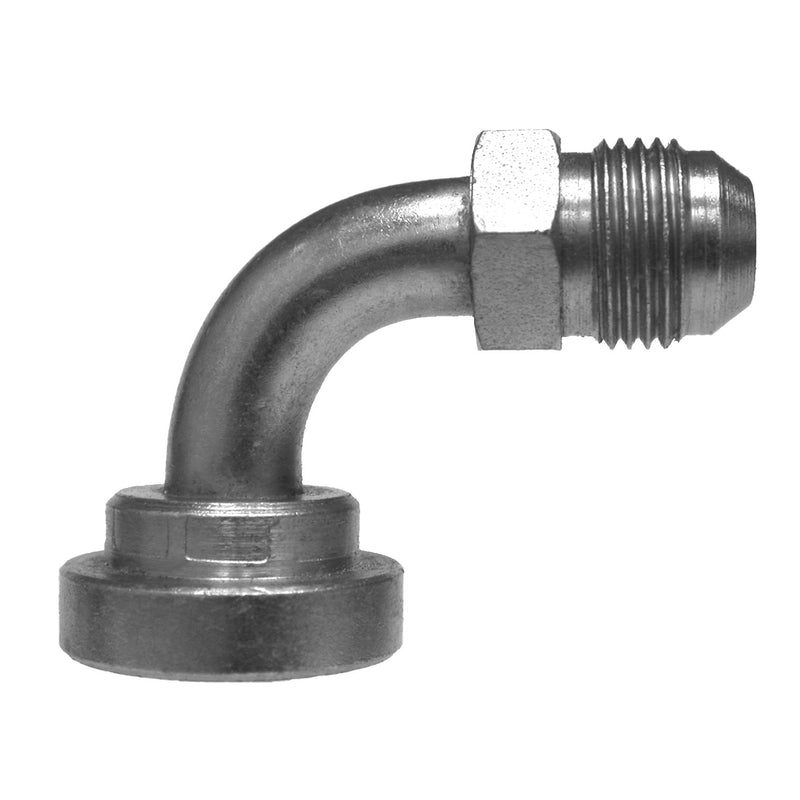

18042016 by Midland | Hydraulic Flange | 1-5/8-12 Male JIC 37° Flare x 1" Flange Size | Code 62 | 90° Elbow | Adapter | Steel

18042016 by Midland | Hydraulic Flange | 1-5/8-12 Male JIC 37° Flare x 1" Flange Size | Code 62 | 90° Elbow | Adapter | Steel

Save $14.86 Save $14.86
$95.48
$95.48 - $95.48
$95.48
$80.62
$80.62 - $80.62
$80.62

Midland Industries
Hydraulic Flang Adapter: Code 62 90° JIC Flange Adapter - Steel

6000 PSI

Conforms to SAE J518.
Specifications for Variant SKU: 18042016 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Male JIC, 1in Code 62 Flange
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, SAE J518
Technical Info:
Crossover Series:
6842
Part Number Male JIC 37° Flare
(1)		 Male JIC 37° Flare Thread
(1)		 Flange Size
(2)
180488 1/2" 3/4-16 1/2"
18041212 3/4" 1-1/16-12 3/4"
18041216 3/4" 1-1/16-12 1"
18041220 3/4" 1-1/16-12 1-1/4"
18041612 1" 1-5/16-12 3/4"
18041616 1" 1-5/16-12 1"
18041624 1" 1-5/16-12 1-1/2"
18042016 1-1/4" 1-5/8-12 1"
18042020 1-1/4" 1-5/8-12 1-1/4"
18042024 1-1/4" 1-5/8-12 1-1/2"
18042420 1-1/2" 1-7/8-12 1-1/4"
18042424 1-1/2" 1-7/8-12 1-1/2"
18043232 2" 2-1/2-12 2"
