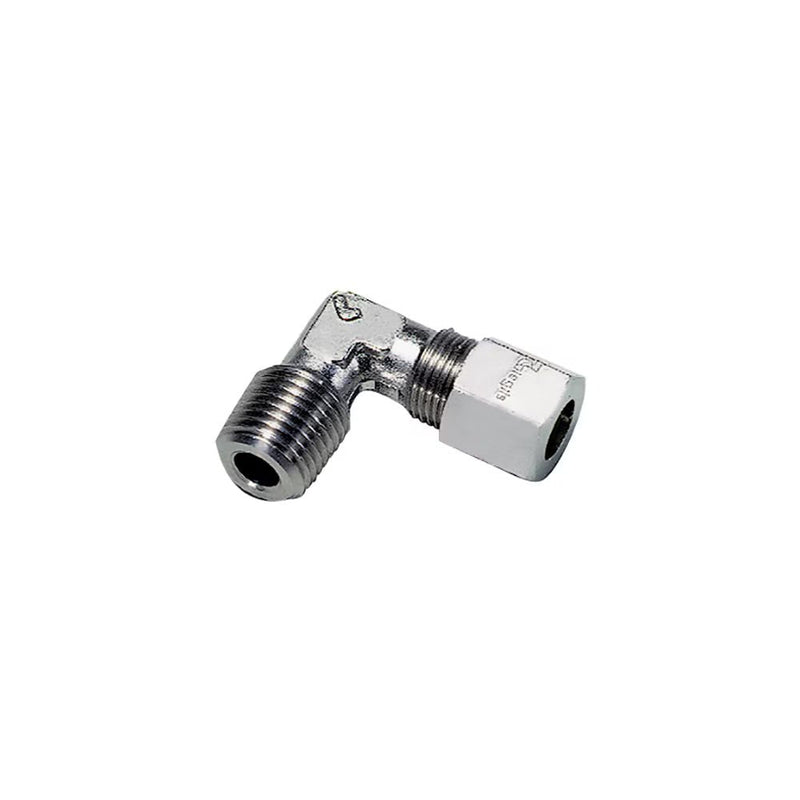

1809 06 10 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/8" Male BSPT Thread | 13 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

Save $21.48

$169.21

$169.21 - $169.21

$169.21

$147.73

$147.73 - $147.73

$147.73

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1809 Stud Elbow, Male BSPT Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1809 06 10 Parker \| 2 \|
Series:	1809 Series
Shape (Orientation):	90° Elbow
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	C	F	H	J	L (max)	L1	Kg
1809 06 10	6 mm	1/8"	13 mm	18 mm	8 mm	25.5 mm	13.5 mm	.020 Kg
1809 06 13	6 mm	1/4"	13 mm	23 mm	10 mm	25.5 mm	13.5 mm	.029 Kg
1809 08 10	8 mm	1/8"	14 mm	20.5 mm	20 mm	28.5 mm	14.5 mm	.026 Kg
1809 08 13	8 mm	1/4"	14 mm	23 mm	10 mm	28.5 mm	14.5 mm	.030 Kg
1809 12 17	12 mm	3/8"	22 mm	27 mm	14 mm	34 mm	17 mm	.070 Kg
