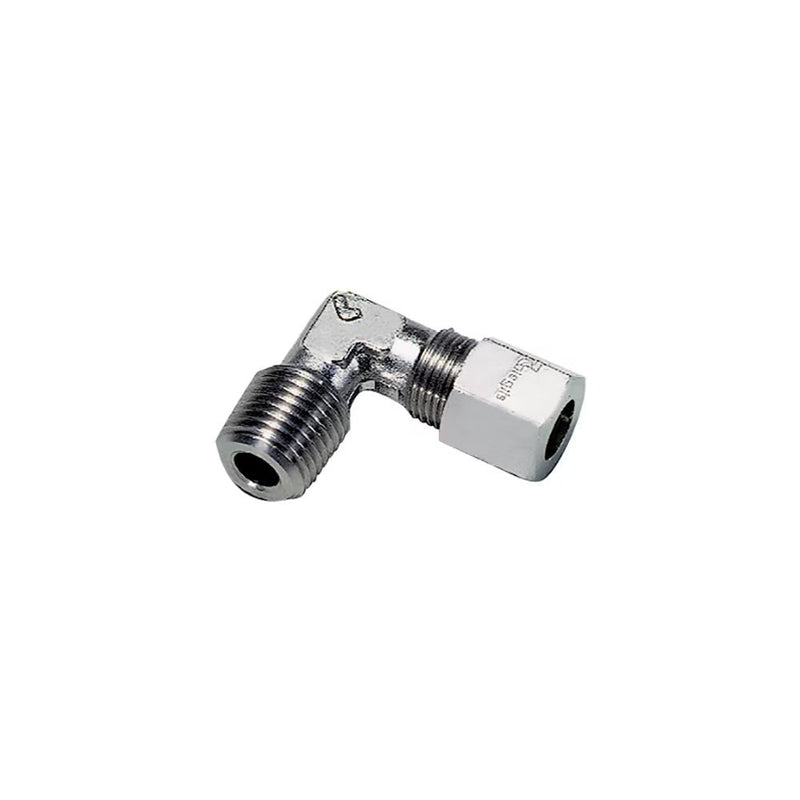

1809 10 22 by Parker | Legris Stud Fitting | 10 mm Tube Size x 1/2" Male NPT Thread | 19 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

Save $168.05

$420.13

$420.13 - $420.13

$420.13

$252.08

$252.08 - $252.08

$252.08

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1809 Stud Elbow, Male NPT Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1809 10 22 Parker \| 2 \|
Series:	1809 Series
Shape (Orientation):	90° Elbow
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	C	F	H	J	L (max)	L1	Kg
1809 08 11	8 mm	1/8"	14 mm	22 mm	10 mm	28.5 mm	14.5 mm	.027 Kg
1809 08 14	8 mm	1/4"	14 mm	25.5 mm	10 mm	28.5 mm	14.5 mm	.032 Kg
1809 10 14	10 mm	1/4"	19 mm	27.5 mm	12 mm	32.5 mm	16 mm	.053 Kg
1809 10 18	10 mm	3/8"	19 mm	28 mm	12 mm	32.5 mm	16 mm	.060 Kg
1809 10 22	10 mm	1/2"	19 mm	35 mm	18 mm	36.5 mm	20 mm	.096 Kg
1809 12 22	12 mm	1/2"	22 mm	35 mm	18 mm	37 mm	20 mm	.101 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
