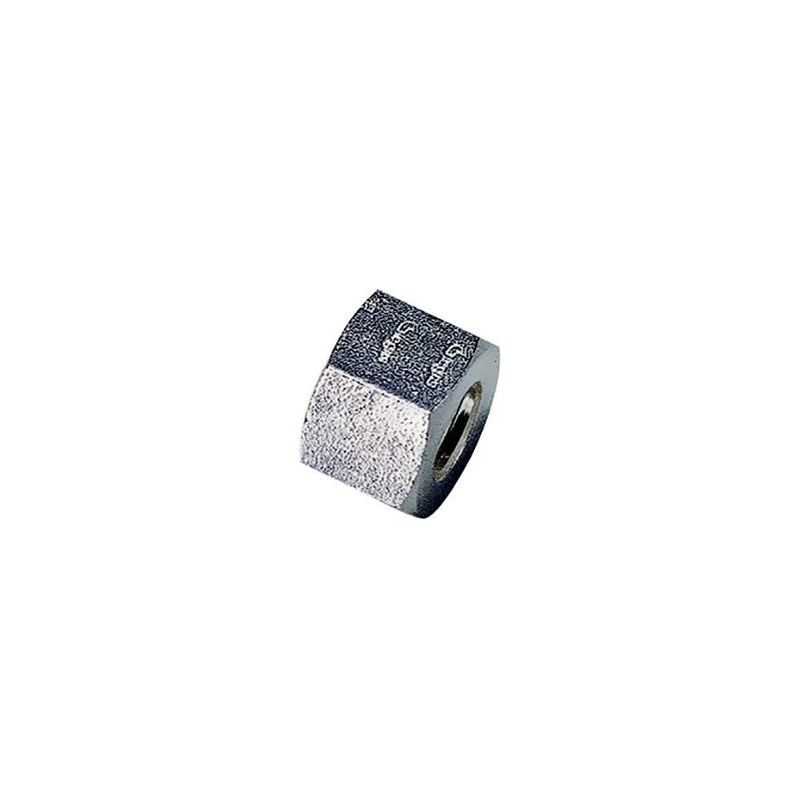

1810 06 00 by Parker | Complementary Fittings | 6 mm Nut x M10x1 Thread | 13 mm Hex | 11 mm Length | Straight | 316L Stainless Steel | Pack of 5

Save $73.87

$184.67

$184.67 - $184.67

$184.67

$110.80

$110.80 - $110.80

$110.80

by Parker Hannifin
Stainless Steel Compression Fittings / Complementary Fittings:1810 Stainless Steel Nut

Package Quantity: 5 Units

Specifications for Variant SKU: 1810 06 00 Parker \| 5 \|
Series:	1810 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	C	F	L	Kg
1810 06 00	6 mm	M10x1	13 mm	11 mm	.007 Kg
1810 08 00	8 mm	M12x1	14 mm	13 mm	.008 Kg
1810 10 00	10 mm	M16x1.5	19 mm	15 mm	.017 Kg
1810 12 00	12 mm	M18x1.5	22 mm	15 mm	.024 Kg
