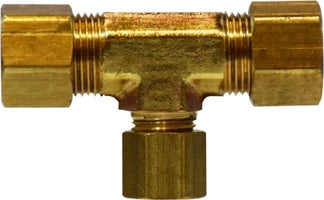

18110 (18-110) Midland Compression Fitting - Forged Reducing Tee - 1/4" Tube OD x 1/4" Tube OD x 3/8" Tube OD - Brass

18110 by Midland | Compression Fitting | Forged Reducing | 1/4" Tube OD x 1/4" Tube OD x 3/8" Tube OD | Tee | Brass

Save $1.34

$12.06

$12.06 - $12.06

$12.06

$10.72

$10.72 - $10.72

$10.72

Midland Industries
Brass Fitting - Compression Fitting - Forged Reducing Tee - Compression x Compression x Compression - Brass

Inventory @ Manufacturers Warehouse: 104 Units

Quantity

Specifications for Variant SKU: 18110 Midland
Shape (Orientation):	Tee
Ends Configuration:	1/4in Tube Compression, 1/4in Tube Compression, 3/8in Tube Compression, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

Applications:	Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.	Used With:	Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
SAE Rating:	N/A	Conformance:	Meets specifications and standards of ASA, ASME and SAE.
Vibration:	Fair resistance - use long nut when greater vibration resistance is needed.	Temperature Range:	-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. (Refer to tubing temperature range.)
Lead Free:	These are NOT Lead Free	Tolerance:	+/- .02 on all dimensions.

Assembly Instructions:

1) Cut tubing to desired length.
2) Slide nut and then sleeve on tube. Threaded end "A" of nut must face toward fitting.
3) Insert tubing into fitting body. Be sure tubing is bottomed on fitting shoulder.
4) Lubricate threads and assemble nut to fitting body.
5) Tighten nut hand tight. From that point, tighten with a wrench the number of turns indicated below.

Tube Size: 1/8" thru 1/4" | Additional Turns from Hand Tight: 1-1/4"
Tube Size: 5/16" | Additional Turns from Hand Tight: 1-3/4"
Tube Size: 3/8" thru 1" | Additional Turns from Hand Tight: 2-1/4"


Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size - B	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18
Working Pressure	400 PSI	400 PSI	300 PSI	300 PSI	200 PSI	200 PSI	200 PSI	150 PSI	100 PSI	75 PSI

Working Pressures at 73°F.

Crossover Series:
64-R (64R)


Part Number	Size 1 x 2 x 3	A	B	Body Size	Approx. Weight (Lbs.)
18114 (18-114)	1/4" x 1/4" x 1/8"	0.62"	0.59"	0.38"	0.09
18110 (18-110)	1/4" x 1/4" x 3/8"	0.69"	0.75"	0.50"	0.14
18111 (18-111)	3/8" x 1/4" x 1/4"	0.75"	0.69"	0.50"	0.12
18115 (18-115)	3/8" x 3/8" x 1/4"	0.75"	0.69"	0.50"	0.14
18116 (18-116)	1/2" x 1/2" x 1/4"	0.94"	0.81"	0.59"	0.16
18117 (18-117)	1/2" x 1/2" x 3/8"	0.94"	0.81"	0.59"	0.24
18118 (18-118)	5/8" x 5/8" x 3/8"	1.06"	0.94"	0.69"	0.28
18119 (18-119)	5/8" x 5/8" x 1/2"	1.06"	1.06"	0.69"	0.30

Dimension data can change without notice.
