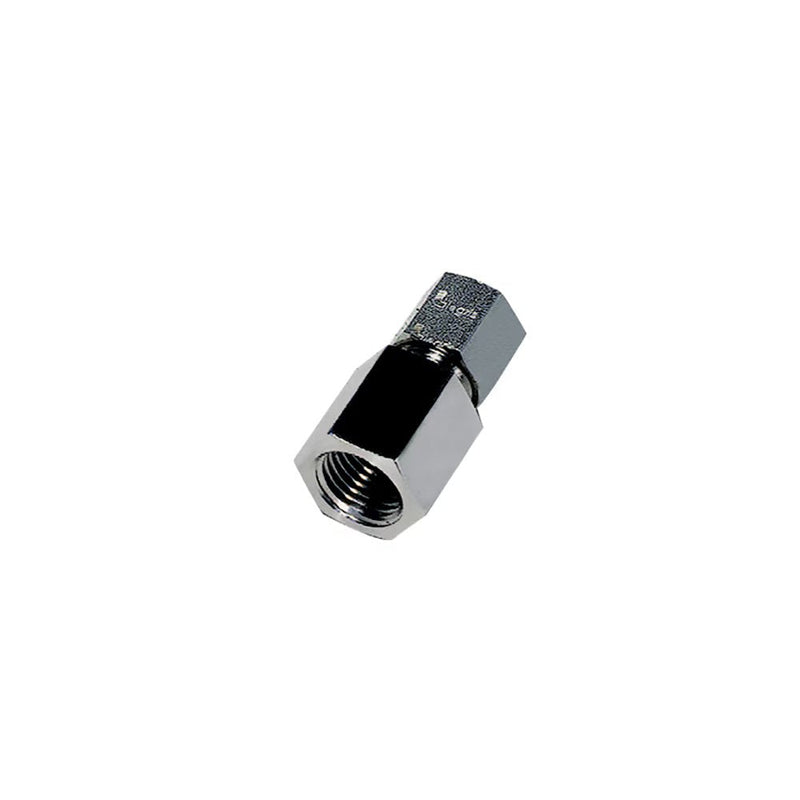

1814 08 13 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/4" Female BSPP Thread | 17 mm Hex (F) | 14 mm Hex (F1) | 34.5 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $23.32

$186.49

$186.49 - $186.49

$186.49

$163.17

$163.17 - $163.17

$163.17

by Parker Hannifin
Stainless Steel Compression Fittings / Stud Fittings:1814 Stud Fitting, Female BSPP Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1814 08 13 Parker \| 2 \|
Series:	1814 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Special Properties:	Environmental Resistance, Corrosion Resistance, Temperature Resistance, Pressure Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: Vacuum to 400 bar - (80 bar in corrosive environments) Working Temperature: -60°C to +250°C Reliable performance is dependent upon the type of fluid conveyed and tubing being used. Guaranteed for use with vacuum of 755 mm Hg (95% vacuum). Thread sealing must be guaranteed by user.
Advantages:	Excellent sealing and retention of the tube Metallic sealing guarantees maximum service life Connection of different types of pipes and tubes: metal, polymers, steel, rubber, ... No tube support required for rigid and semi-rigid polyamide tubing below 12 mm Connection of several pipe diameters thanks to the Parker Legris assembly reduction system Range of associated accessories in 316L Stainless Steel
Regulations:	RoHS PED REACH 1935/2004
Component Materials:	Stem Adapter: Stainless Steel Body: Stainless Steel Nut: Stainless Steel Olive: Stainless Steel Reducer: Stainless Steel Reducing Nut: Stainless Steel Tube: Fluoropolymer (FEP or PFA) and Stainless Steel


Part Number	ØD	C	E	F	F1	H (max)	H1	Kg
1814 06 10	6 mm	1/8"	7 mm	14 mm	13 mm	29 mm	17 mm	.024 Kg
1814 06 13	6 mm	1/4"	11 mm	17 mm	13 mm	29 mm	21 mm	.031 Kg
1814 08 13	8 mm	1/4"	11 mm	17 mm	14 mm	34.5 mm	20.5 mm	.033 Kg
1814 12 21	12 mm	1/2"	15 mm	27 mm	22 mm	43.5 mm	26.5 mm	.121 Kg
