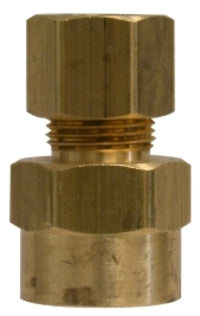

18152 (18-152) Midland Compression - Female Adapter - 3/8" Tube OD x 1/8" Female NPTF - Brass

18152 by Midland | Compression | 3/8" Tube OD x 1/8" Female NPTF | Adapter | Brass

Save $1.74 Save $1.74
$4.35
$4.35 - $4.35
$4.35
$2.61
$2.61 - $2.61
$2.61

Midland Industries
Brass Fitting - Compression Fitting - Female Adapter - Compression x Female NPTF - Brass

Inventory @ Manufacturers Warehouse: 2004 Units
Specifications for Variant SKU: 18152 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 1/8in Female NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
Applications: Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media. Used With: Aluminum, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
SAE Rating: SAE# 060103 Conformance: Meets specifications and standards of ASA, ASME and SAE.
Vibration: Fair resistance - use long nut when greater vibration resistance is needed. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. (Refer to tubing temperature range.)
Lead Free: These are NOT Lead Free Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Cut tubing to desired length.
  • 2) Slide nut and then sleeve on tube. Threaded end "A" of nut must face toward fitting.
  • 3) Insert tubing into fitting body. Be sure tubing is bottomed on fitting shoulder.
  • 4) Lubricate threads and assemble nut to fitting body.
  • 5) Tighten nut hand tight. From that point, tighten with a wrench the number of turns indicated below.
    • Tube Size: 1/8" thru 1/4" | Additional Turns from Hand Tight: 1-1/4"
    • Tube Size: 5/16" | Additional Turns from Hand Tight: 1-3/4"
    • Tube Size: 3/8" thru 1" | Additional Turns from Hand Tight: 2-1/4"
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8"
Thread Size - B 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/8-18
Working Pressure 400 PSI 400 PSI 300 PSI 300 PSI 200 PSI 200 PSI 200 PSI 150 PSI 100 PSI 75 PSI

Working Pressures at 73°F.

Crossover Series:
66
Part Number Compression x Female NPTF A Hex Approx. Weight
(Lbs.)
18142
(18-142)		 1/8" x 1/8" 0.75" 0.56" 0.02
18143
(18-143)		 3/16" x 1/8" 0.78" 0.56" 0.04
18144
(18-144)		 3/16" x 1/4" 0.96" 0.68" 0.04
18145L
(18-145L)		 1/4" x 1/8" 0.84" 0.50" 0.05
18145
(18-145)		 1/4" x 1/8" 0.78" 0.56" 0.05
18146L
(18-146L)		 1/4" x 1/4" 0.88" 0.62" 0.09
18146
(18-146)		 1/4" x 1/4" 1.03" 0.68" 0.09
18148
(18-148)		 1/4" x 1/2" 1.02" 0.87" 0.12
18149
(18-149)		 5/16" x 1/8" 0.81" 0.56" 0.05
18150
(18-150)		 5/16" x 1/4" 0.91" 0.62" 0.06
18152
(18-152)		 3/8" x 1/8" 0.88" 0.56" 0.06
18153L
(18-153L)		 3/8" x 1/4" 0.97" 0.62" 0.08
18153
(18-153)		 3/8" x 1/4" 1.06" 0.68" 0.08
18154L
(18-154L)		 3/8" x 3/8" 1.03" 0.75" 0.08
18154
(18-154)		 3/8" x 3/8" 1.06" 0.81" 0.10
18155
(18-155)		 3/8" x 1/2" 1.12" 1.00" 0.08
18156
(18-156)		 3/8" x 3/4" 1.19" 1.16" 0.14
18157
(18-157)		 1/2" x 1/4" 1.09" 0.68" 0.10
18158L
(18-158L)		 1/2" x 3/8" 0.94" 0.81" 0.12
18158
(18-158)		 1/2" x 3/8" 1.12" 0.81" 0.12
18159L
(18-159L)		 1/2" x 1/2" 1.19" 1.00" 0.12
18159
(18-159)		 1/2" x 1/2" 1.31" 1.00" 0.12
18160
(18-160)		 1/2" x 3/4" 1.25" 1.16" 0.18
18162L
(18-162L)		 5/8" x 1/2" 1.20" 0.94" 0.18
18162
(18-162)		 5/8" x 1/2" 1.38" 1.00" 0.18
18163
(18-163)		 5/8" x 3/4" 1.20" 1.12" 0.22
18164
(18-164)		 3/4" x 1/2" 1.25" 1.06" 0.26
18165
(18-165)		 3/4" x 3/4" 1.28" 1.19" 0.28
18167
(18-167)		 7/8" x 1/2" 1.28" 1.19" 0.32
18166
(18-166)		 7/8" x 3/4" 1.31" 1.12" 0.34

"L" at the end of a Part# means Light Pattern: These fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.

Dimension data can change without notice.
