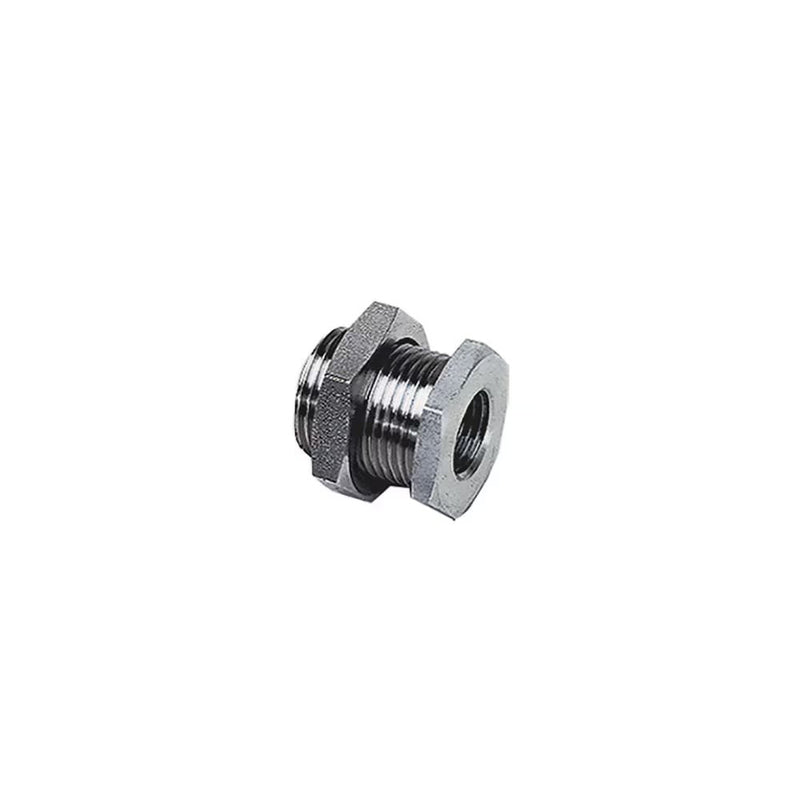

1817 00 27 by Parker | Legris Equal Bulkhead | 3/4" Female BSPP Thread | 41 mm Hex (F) | 41 mm Hex (F1) | 36 mm Length | Straight | 316L Stainless Steel

Save $21.16

$162.13

$162.13 - $162.13

$162.13

$140.97

$140.97 - $140.97

$140.97

by Parker Hannifin
Stainless Steel Adapters:1817 Equal Bulkhead Adaptor, Female BSPP Thread

Specifications for Variant SKU: 1817 00 27 Parker
Series:	1817 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C	F	F1	K (max)	L	L1	ØT (min)	Kg
1817 00 10	1/8"	19 mm	22 mm	9 mm	14 mm	4 mm	16.5 mm	.031 Kg
1817 00 13	1/4"	24 mm	27 mm	15 mm	21 mm	4 mm	20.5 mm	.053 Kg
1817 00 17	3/8"	30 mm	32 mm	14 mm	21 mm	5 mm	26.5 mm	.089 Kg
1817 00 21	1/2"	32 mm	36 mm	20 mm	27 mm	6 mm	28.5 mm	.108 Kg
1817 00 27	3/4"	41 mm	41 mm	22.5 mm	30 mm	6 mm	34.5 mm	.152 Kg
1817 00 34	1"	46 mm	50 mm	24.5 mm	34 mm	8 mm	42.5 mm	.253 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
