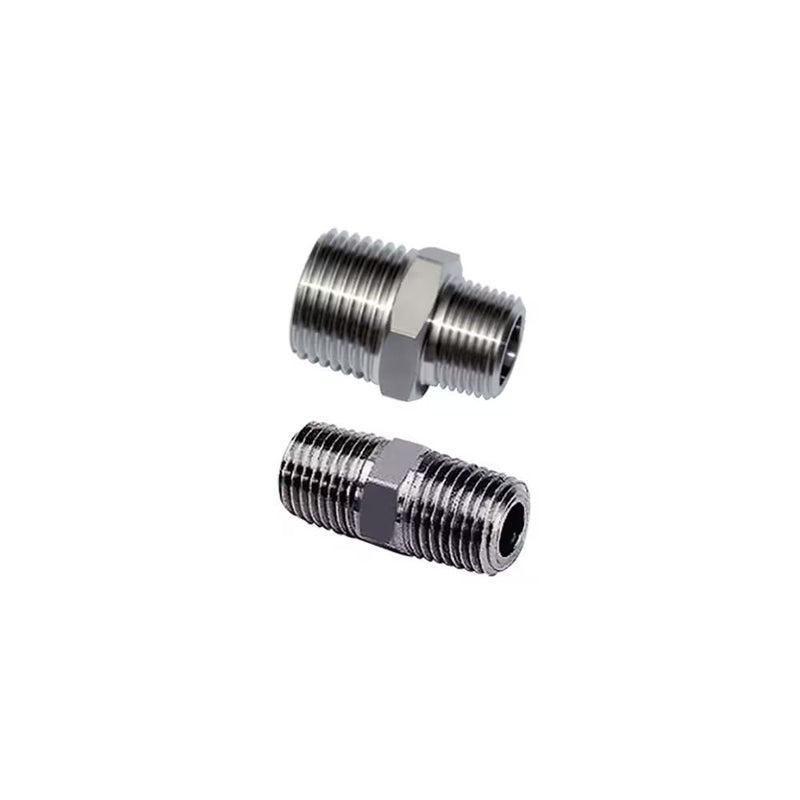

1821 34 27 by Parker | Legris Unequal Adapter | 1" Male BSPT Thread x 3/4" Male BSPT Thread | 36 mm Hex | 46 mm Length | Straight | 316L Stainless Steel

Save $13.21

$86.72

$86.72 - $86.72

$86.72

$73.51

$73.51 - $73.51

$73.51

by Parker Hannifin
Stainless Steel Adapters:1821 Equal and Unequal Adaptor, Male BSPT Thread

Specifications for Variant SKU: 1821 34 27 Parker
Series:	1821 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C1	C2	F	L	Kg
1821 10 10	1/8"	1/8"	12 mm	19 mm	.009 Kg
1821 13 10	1/4"	1/8"	14 mm	23.5 mm	.015 Kg
1821 13 13	1/4"	1/4"	12 mm	27 mm	.019 Kg
1821 17 13	3/8"	1/4"	17 mm	27.5 mm	.023 Kg
1821 17 17	3/8"	3/8"	17 mm	28 mm	.024 Kg
1821 21 17	1/2"	3/8"	22 mm	32.5 mm	.042 Kg
1821 21 21	1/2"	1/2"	22 mm	36 mm	.049 Kg
1821 27 21	3/4"	1/2"	27 mm	41 mm	.079 Kg
1821 27 27	3/4"	3/4"	27 mm	42 mm	.088 Kg
1821 34 27	1"	3/4"	36 mm	46 mm	.141 Kg
1821 34 34	1"	1"	36 mm	48 mm	.147 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
