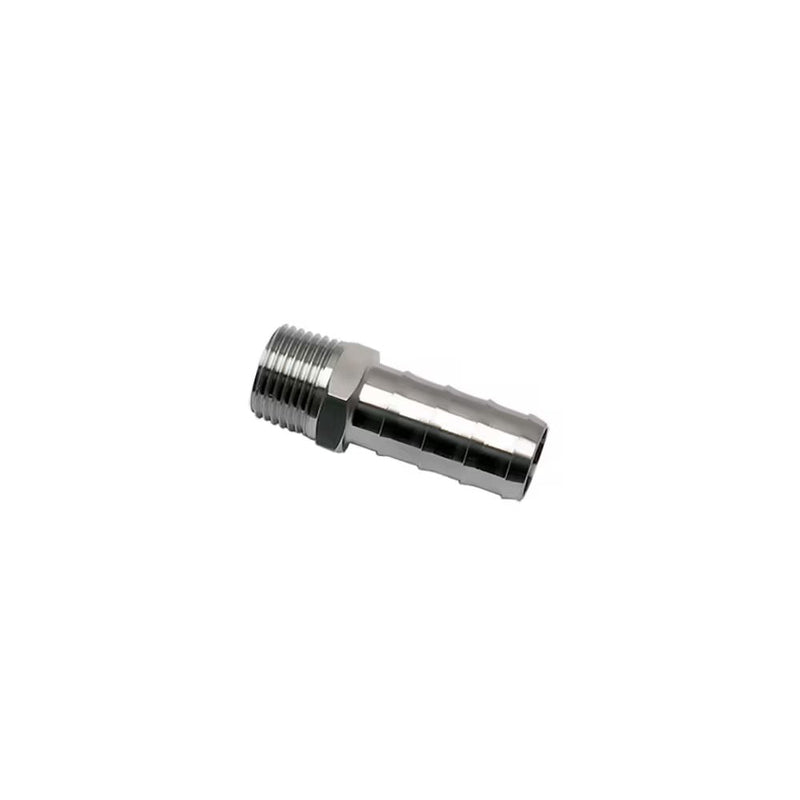

1823 16 21 by Parker | Legris Tailpipe Adapter for Rubber Hose | 18.5 mm Tube Size x 1/2" Male BSPT Thread | 22 mm Hex | 59 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $22.73

$180.44

$180.44 - $180.44

$180.44

$157.71

$157.71 - $157.71

$157.71

by Parker Hannifin
Stainless Steel Adapters:1823 Tailpipe Adaptor for Rubber Hose, Male BSPT Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1823 16 21 Parker \| 2 \|
Series:	1823 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	ØD	ØD1	C	F	L	L1	ØT	Kg
1823 07 10	7 mm	9 mm	1/8"	10 mm	34 mm	22.5 mm	5 mm	.009 Kg
1823 07 13	7 mm	9 mm	1/4"	14 mm	38.5 mm	22.5 mm	6 mm	.017 Kg
1823 10 13	10 mm	12.2 mm	1/4"	14 mm	38.5 mm	22.5 mm	7 mm	.018 Kg
1823 10 17	10 mm	12.2 mm	3/8"	17 mm	39 mm	22.5 mm	9.5 mm	.021 Kg
1823 13 17	13 mm	15 mm	3/8"	17 mm	46 mm	29.5 mm	11 mm	.025 Kg
1823 16 21	16 mm	18.5 mm	1/2"	22 mm	59 mm	38 mm	14 mm	.048 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
