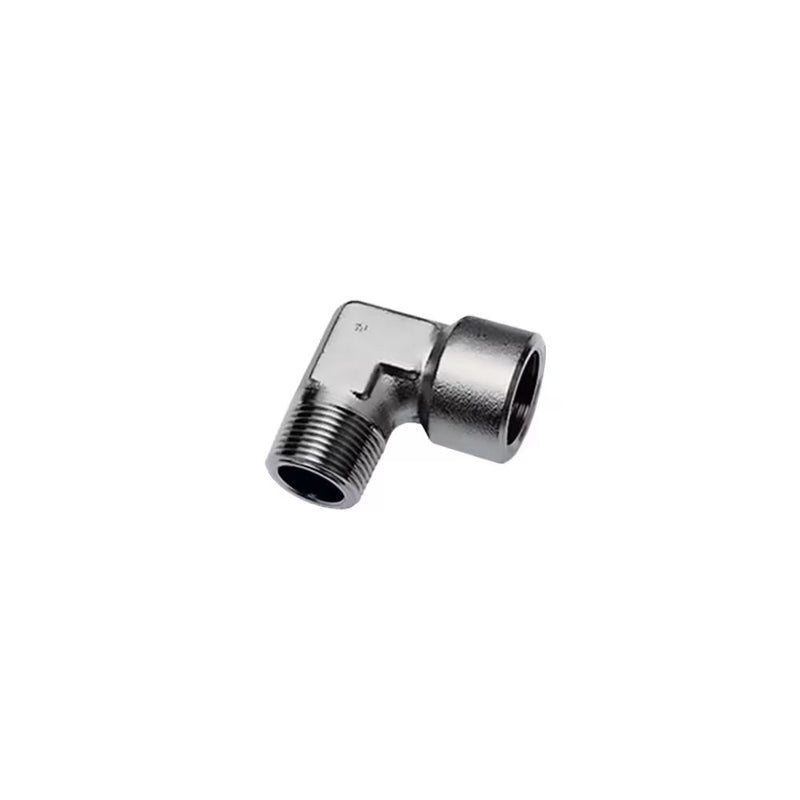

1844 27 27 by Parker | Legris Equal Stud Fitting | 3/4" Male BSPT Thread x 3/4" Female BSPP Thread | 90° Elbow | 316L Stainless Steel

1844 27 27 by Parker | Legris Equal Stud Fitting | 3/4" Male BSPT Thread x 3/4" Female BSPP Thread | 90° Elbow | 316L Stainless Steel

Save $137.01 Save $137.01
$342.52
$342.52 - $342.52
$342.52
$205.51
$205.51 - $205.51
$205.51

by Parker Hannifin
Stainless Steel Adapters:1844 Equal Stud Elbow, Male BSPT/Female BSPP Thread
Specifications for Variant SKU: 1844 27 27 Parker
Series: 1844 Series
Shape (Orientation): 90° Elbow
Material(s): 316L Stainless Steel
Adapters and Manifolds:
Part Number C1 C2 E G H J L Kg
1844 10 10 1/8" 1/8" 7.5 mm 15 mm 20.5 mm 10 mm 22.5 mm .022 Kg
1844 13 13 1/4" 1/4" 12 mm 18.5 mm 27.5 mm 12 mm 26.5 mm .045 Kg
1844 17 17 3/8" 3/8" 12 mm 23.5 mm 28 mm 14 mm 30 mm .070 Kg
1844 21 21 1/2" 1/2" 15 mm 28 mm 38 mm 18 mm 38 mm .120 Kg
1844 27 27 3/4" 3/4" 16.5 mm 33 mm 41 mm 22 mm 44.5 mm .160 Kg
1844 34 34 1" 1" 19 mm 40 mm 48 mm 32 mm 50 mm .311 Kg
