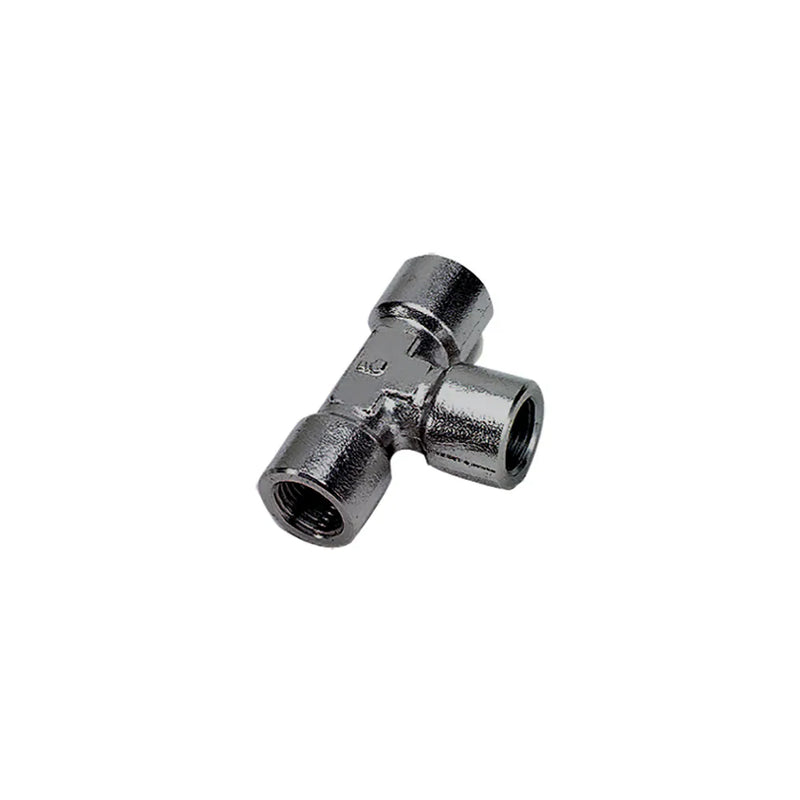

1845 13 13 by Parker | Legris Equal | 1/4" Female BSPP Thread | 33 mm Length | Tee | 316L Stainless Steel | Pack of 2

Save $102.91

$257.28

$257.28 - $257.28

$257.28

$154.37

$154.37 - $154.37

$154.37

by Parker Hannifin
Stainless Steel Adapters:1845 Equal Tee, Female BSPP Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1845 13 13 Parker \| 2 \|
Series:	1845 Series
Shape (Orientation):	Tee
Material(s):	316L Stainless Steel


Adapters and Manifolds:

.217 Kg


Part Number	C	E	G	H	J	L/2	Kg
1845 10 10	1/8"	7.5 mm	17.5 mm	22.5 mm	12 mm	22.5 mm	.057 Kg
1845 13 13	1/4"	11 mm	18.5 mm	26.5 mm	15 mm	29 mm	.074 Kg
1845 17 17	3/8"	11.5 mm	23.5 mm	29 mm	18 mm	29 mm	.103 Kg
1845 21 21	1/2"	15 mm	28 mm	38 mm	23 mm	38
1845 27 27	3/4"	16.5 mm	33 mm	43.5 mm	22 mm	43.5 mm	.301 Kg
1845 34 34	1"	19 mm	40 mm	50 mm	32 mm	50 mm	.0447 Kg
