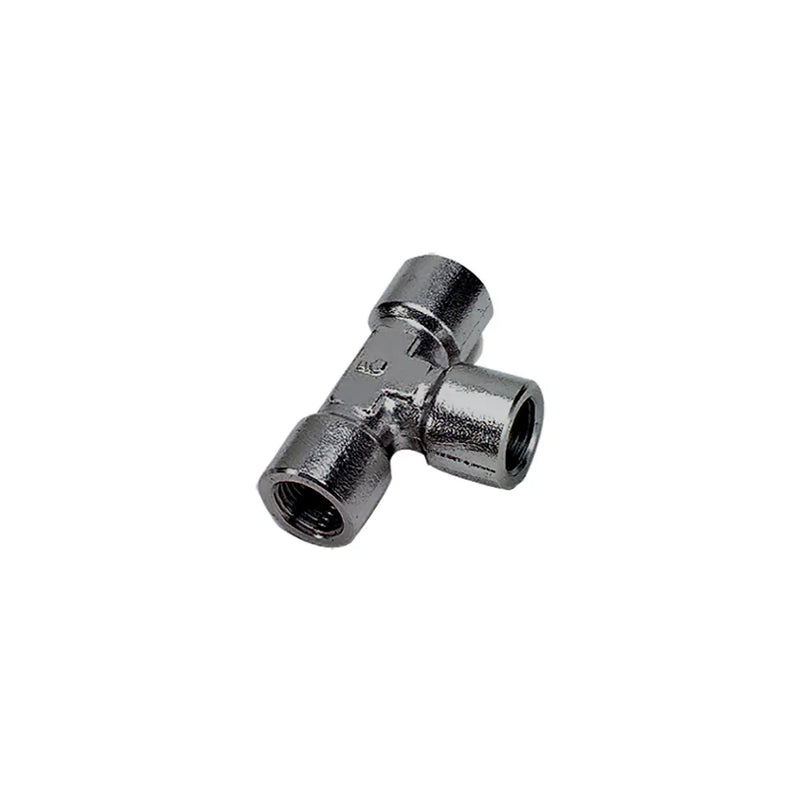

1845 34 34 by Parker | Legris Equal | 1" Female BSPP Thread | 100 mm Length | Tee | 316L Stainless Steel

Save $33.92

$277.35

$277.35 - $277.35

$277.35

$243.43

$243.43 - $243.43

$243.43

by Parker Hannifin
Stainless Steel Adapters:1845 Equal Tee, Female BSPP Thread

Specifications for Variant SKU: 1845 34 34 Parker
Series:	1845 Series
Shape (Orientation):	Tee
Material(s):	316L Stainless Steel


Adapters and Manifolds:

.217 Kg


Part Number	C	E	G	H	J	L/2	Kg
1845 10 10	1/8"	7.5 mm	17.5 mm	22.5 mm	12 mm	22.5 mm	.057 Kg
1845 13 13	1/4"	11 mm	18.5 mm	26.5 mm	15 mm	29 mm	.074 Kg
1845 17 17	3/8"	11.5 mm	23.5 mm	29 mm	18 mm	29 mm	.103 Kg
1845 21 21	1/2"	15 mm	28 mm	38 mm	23 mm	38
1845 27 27	3/4"	16.5 mm	33 mm	43.5 mm	22 mm	43.5 mm	.301 Kg
1845 34 34	1"	19 mm	40 mm	50 mm	32 mm	50 mm	.0447 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
