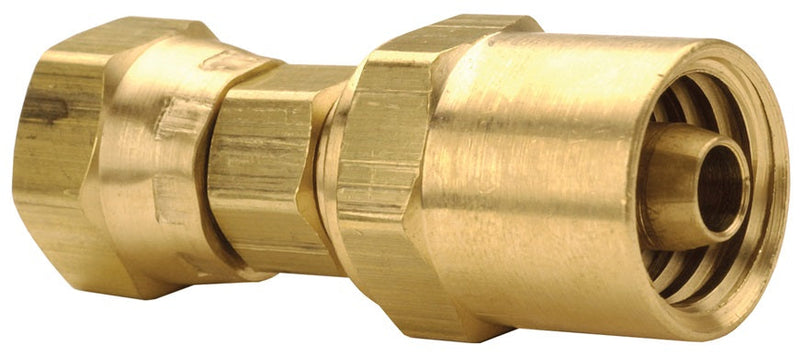

1854086K by Dixon Valve | Reusable Fitting | Female Swivel Stem & Ferrule Set (Unassembled) | 1/4" Hose ID | 1/2" Hose OD | 3/8" Female NPSM | Brass

1854086K by Dixon Valve | Reusable Fitting | Female Swivel Stem & Ferrule Set (Unassembled) | 1/4" Hose ID | 1/2" Hose OD | 3/8" Female NPSM | Brass

Save $5.06 Save $5.06
$12.65
$12.65 - $12.65
$12.65
$7.59
$7.59 - $7.59
$7.59

Dixon Valve
Reusable Fitting | Swivel Stem x Female NPSM x Hose Barb

Reusable fittings are recommended for low pressure air hose applications.
Specifications for Variant SKU: 1854086K Dixon
Series: 185 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Reusable Hose End, 3/8in Female NPSM
Material(s): Brass
Features:
  • Durable, easily repaired hose connection.
  • Caution: check hose O.D. and I.D. accurately before ordering.
  • Recommended for use with rubber covered hose only.
  • All re-usable fittings are of heavy duty construction.
  • Reusable fittings offer a more durable hose connection and are easily repaired.
Specifications:
  • Maximum working pressure: 250 PSI at ambient temperature 70°F (21°C).
Safety Notes:
  • Except as specifically noted as to a specific fitting, NO hose fittings manufactured and/or sold by any Dixon® company can be safely used in life dependency applications such as diving, for oxygen, air, or other breathing applications. Dixon fittings are NOT designed and NOT recommended for such use and should NOT BE USED for that purpose. Use of non-approved hose fittings in such applications can result in death or grave personal injuries.
Installation:
  • Simply slip and twist ferrule on end of hose which has been trimmed flush. No skiving necessary.
  • Apply a drop or two of lubricant to fitting before inserting ferrule.
  • Turn reusable fitting into ferrule. Hose is expanded inside ferrule for perfect fit.
Brass
Part Number		 Previous
Part Number		 Hose ID Hose OD Female NPSM
1854084K 185-4084 1/4" 1/2" 1/4"
1854094K 185-4094 1/4" 9/16" 1/4"
1854104K 185-4104 1/4" 5/8" 1/4"
1854086K 185-4086 1/4" 1/2" 3/8"
1854096K 185-4096 1/4" 9/16" 3/8"
1854106K 185-4106 1/4" 5/8" 3/8"
1855094K 185-5094 5/16" 9/16" 1/4"
1855104K 185-5104 5/16" 5/8" 1/4"
1855114K 185-5114 5/16" 11/16" 1/4"
1856104K 185-6104 3/8" 5/8" 1/4"
1856114K 185-6114 3/8" 11/16" 1/4"
1856124K 185-6124 3/8" 3/4" 1/4"
1856106K 185-6106 3/8" 5/8" 3/8"
1856116K 185-6116 3/8" 11/16" 3/8"
1856126K 185-6126 3/8" 3/4" 3/8"
1858148K 185-8148 1/2" 7/8" 1/2"
1858158K 185-8158 1/2" 15/16" 1/2"
1858168K 185-8168 1/2" 1" 1/2"
