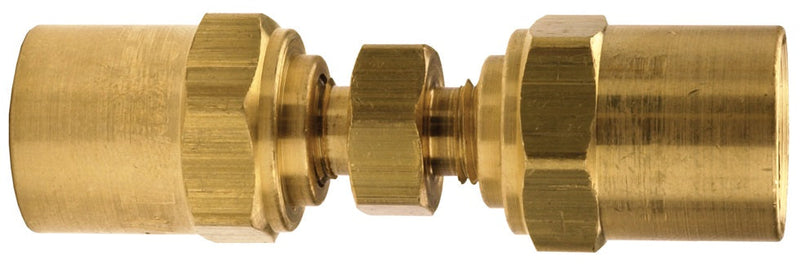

1870408K by Dixon Valve | Reusable Fitting | Hose Mender / Splicer (Unassembled) | 1/4" Hose ID | 1/2" Hose OD | Brass

Save $0.85

$9.89

$9.89 - $9.89

$9.89

$9.04

$9.04 - $9.04

$9.04

Dixon Valve
Reusable Fitting | Hose Mender / Splicer (Unassembled)

Reusable fittings are recommended for low pressure air hose applications.

Quantity

Specifications for Variant SKU: 1870408K Dixon
Series:	187 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Reusable Hose End, 1/4in Reusable Hose End, Some Ends Match
Material(s):	Brass

Features:
Durable, easily repaired hose connection. Caution: check hose O.D. and I.D. accurately before ordering. Recommended for use with rubber covered hose only. All re-usable fittings are of heavy duty construction. Reusable fittings offer a more durable hose connection and are easily repaired.
Specifications:
Maximum working pressure: 250 PSI at ambient temperature 70°F (21°C).
Safety Notes:
Except as specifically noted as to a specific fitting, NO hose fittings manufactured and/or sold by any Dixon® company can be safely used in life dependency applications such as diving, for oxygen, air, or other breathing applications. Dixon fittings are NOT designed and NOT recommended for such use and should NOT BE USED for that purpose. Use of non-approved hose fittings in such applications can result in death or grave personal injuries.
Installation:
Simply slip and twist ferrule on end of hose which has been trimmed flush. No skiving necessary. Apply a drop or two of lubricant to fitting before inserting ferrule. Turn reusable fitting into ferrule. Hose is expanded inside ferrule for perfect fit.

Brass Part Number	Previous Part Number	Hose ID	Hose OD
1870408K	187-0408	1/4"	1/2"
1870409K	187-0409	1/4"	9/16"
1870410K	187-0410	1/4"	5/8"
1870610K	187-0610	3/8"	5/8"
1870611K	187-0611	3/8"	11/16"
1870612K	187-0612	3/8"	3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
