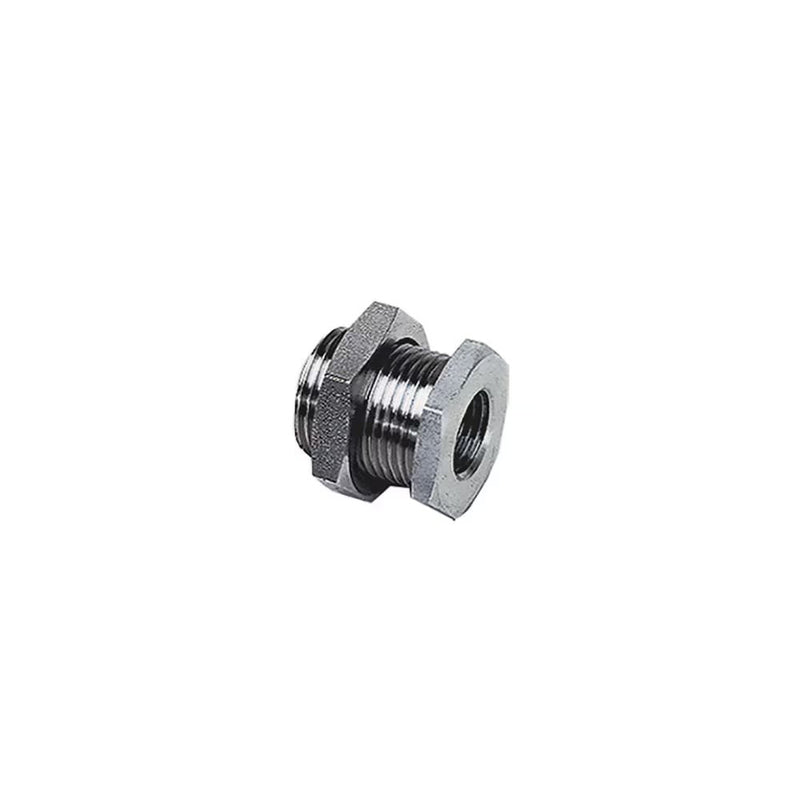

1871 00 22 by Parker | Legris Equal Bulkhead | 1/2" Female NPT Thread | 32 mm Hex (F) | 36 mm Hex (F1) | 35 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $102.72

$256.80

$256.80 - $256.80

$256.80

$154.08

$154.08 - $154.08

$154.08

by Parker Hannifin
Stainless Steel Adapters:1871 Equal Bulkhead Adaptor, Female NPT Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 1871 00 22 Parker \| 2 \|
Series:	1871 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C	F	F1	K (max)	L	L1	ØT (min)	Kg
1871 00 11	1/8"	19 mm	22 mm	9 mm	14 mm	5 mm	16.5 mm	.031 Kg
1871 00 14	1/4"	24 mm	22 mm	9 mm	14 mm	5 mm	20.5 mm	.060 Kg
1871 00 18	3/8"	30 mm	32 mm	18 mm	23 mm	5 mm	26.5 mm	.096 Kg
1871 00 22	1/2"	32 mm	36 mm	22 mm	29 mm	6 mm	28.5 mm	.119 Kg
