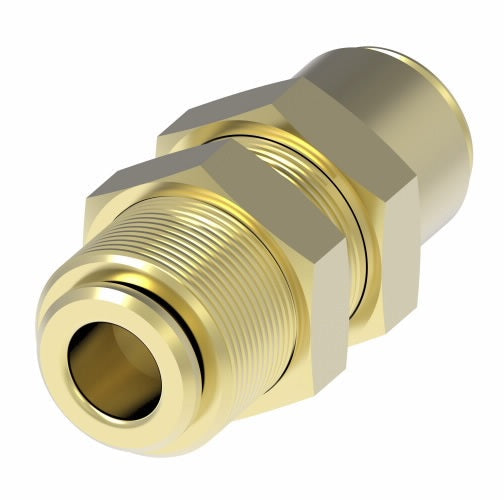

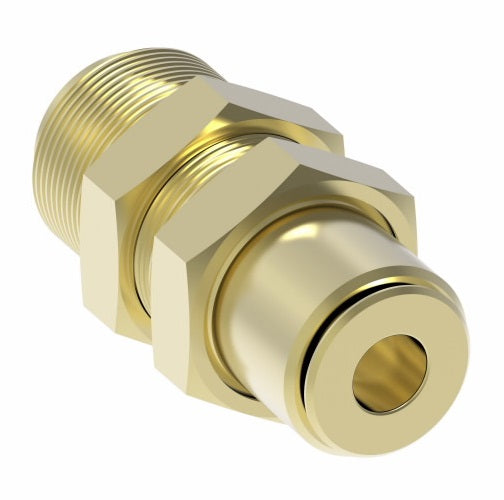

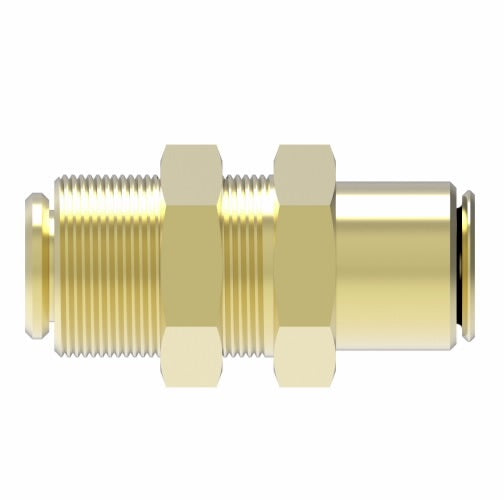

1874X6X6 by Danfoss | Quick Connect Air Brake Adapter | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1874X6X6 by Danfoss | Quick Connect Air Brake Adapter | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1874X6X6 by Danfoss | Quick Connect Air Brake Adapter | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Brass
1874X6X6 by Danfoss | Quick Connect Air Brake Adapter | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Brass

1874X6X6 by Danfoss | Quick Connect Air Brake Adapter | Bulkhead Union | 3/8" Tube OD x 3/8" Tube OD | Brass

$20.86 - $20.86
$20.86
$20.86 - $20.86
$20.86

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Bulkhead Union
Specifications for Variant SKU: 1874X6X6 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0601
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Thread
T		 Hex
C		 Hex
C1		 Hex
L		 Max
P
1874X4X4 1/4" 9/16-24 5/8" 11/16" 1.62" 0.47"
1874X6X6 3/8" 3/4-16 7/8" 15/16" 1.96" 0.66"
1874X8X8 1/2" 7/8-14 1" 1" 2.00" 0.83"
1874X10X10 5/8" 1-14 1" 1-1/4" 2.42" 1.00"
