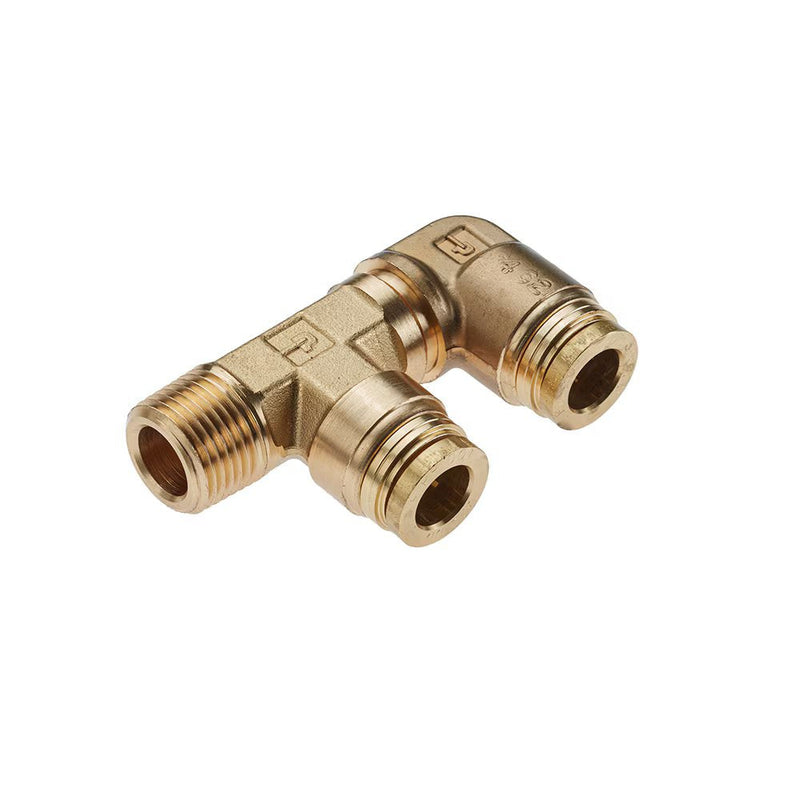

189PTC-8-4-8 by Parker | Threaded Fitting | 1/2" & 1/4" Dual Port Push-to-Connect x 1/2" Male NPT Threads | 90° Elbow | Brass | Pack of 5

189PTC-8-4-8 by Parker | Threaded Fitting | 1/2" & 1/4" Dual Port Push-to-Connect x 1/2" Male NPT Threads | 90° Elbow | Brass | Pack of 5

Save $221.25 Save $221.25
$553.12
$553.12 - $553.12
$553.12
$331.87
$331.87 - $331.87
$331.87

by Parker Hannifin
PTC Brass Fittings:Dual Port 90 Male Elbow Positional 189PTC

Package Quantity: 5 Units

Specifications for Variant SKU: 189PTC-8-4-8 Parker | 5 |
Series: 189PTC Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Pipe Thread L1 L2 N1 N2 Wrench Flats
189PTC-6-4-6 3/8" 1/4" 3/8" 2.12" 1.05" 1.21" 1.19" 11/16"
189PTC-6-6-4 3/8" 3/8" 1/4" 2.06" .98" 1.12" 1.20" 9/16"
189PTC-6-6-6 3/8" 3/8" 3/8" 2.06" .98" 1.12" 1.20" 9/16"
189PTC-10-4-6 5/8" 1/4" 3/8" 2.27" .99" 1.47" 1.13" 7/8"
189PTC-10-6-6 5/8" 3/8" 3/8" 2.35" 1.06" 1.47" 1.13" 7/8"
189PTC-8-4-8 1/2" 1/4" 1/2" N/A N/A N/A N/A N/A
189PTC-8-6-6 1/2" 3/8" 3/8" N/A N/A N/A N/A N/A
189PTC-8-6-8 1/2" 3/8" 1/2" N/A N/A N/A N/A N/A
189PTC-10-4-8 5/8" 1/4" 1/2" N/A N/A N/A N/A N/A
189PTC-10-6-8 5/8" 3/8" 1/2" N/A N/A N/A N/A N/A
189PTC-10-10-8 5/8" 5/8" 1/2" N/A N/A N/A N/A N/A
