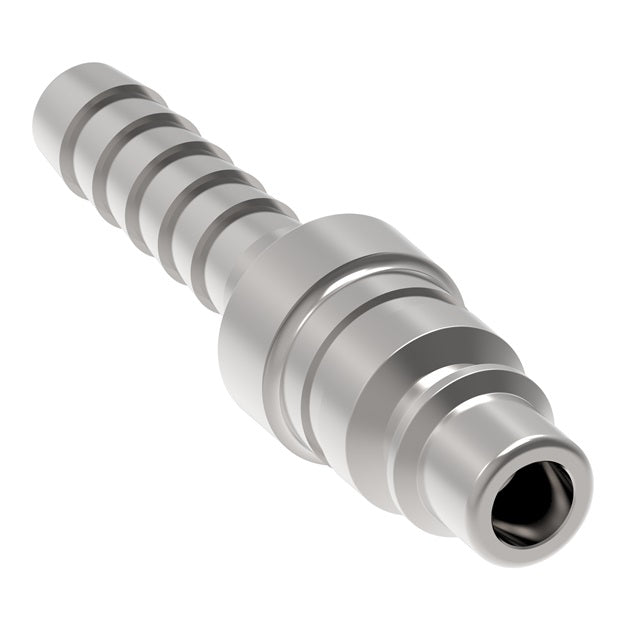

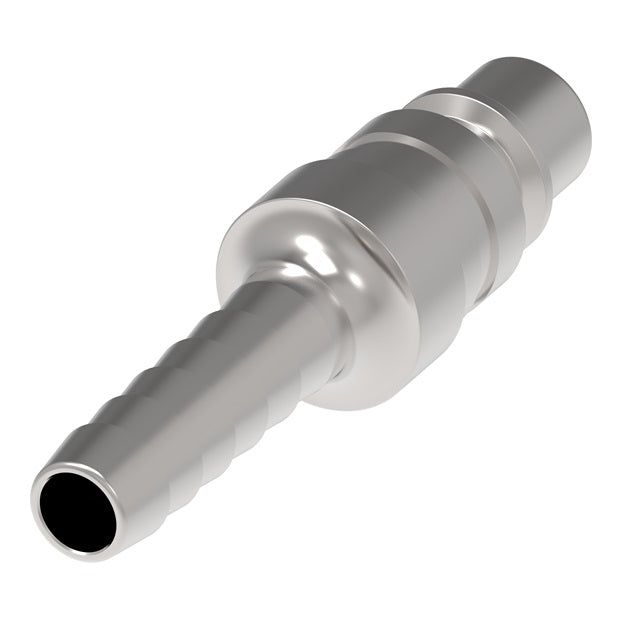

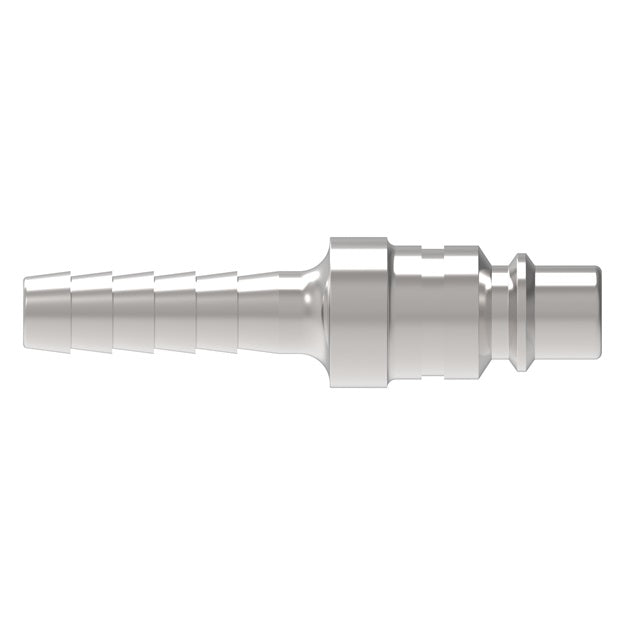

18E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
18E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
18E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
18E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel

18E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel

$11.87 - $11.87
$11.87
$11.87 - $11.87
$11.87

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 1000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: 18E Danfoss
Brand: Hansen
Series: 1000 Series / 3000 Series
Shape (Orientation): Straight
Material(s): Zink-Plated Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
1000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 9 lpm 179 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 5)
Plug/Male
(Figure 6)
(Figure 5A)
(Figure 6A)
1000 Series | Sockets
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
A B C D
1600E Socket/Female 1/4" 1/4" Hose Barb Brass 5 2.60"
(66.04mm)		 1.00"
(25.40mm)		 - -
1600P Socket/Female 1/4" 1/4" Push-On Hose Barb Brass 5, 5A 2.37"
(60.20mm)		 1.00"
(25.40mm)		 - -
1700E Socket/Female 1/4" 3/8" Hose Barb Brass 5 2.60"
(66.04mm)		 1.00"
(25.40mm)		 - -
1700P Socket/Female 1/4" 3/8" Push-On Hose Barb Brass 5, 5A 2.44"
(61.98mm)		 1.00"
(25.40mm)		 - -
1800 Socket/Female 1/4" 5/16" Hose Barb Brass 5 2.60"
(66.04mm)		 1.00"
(25.40mm)		 - -
1000 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
A B C D
16P Plug/Male 1/4" 1/4" Push-On Hose Barb Steel 6, 6A - - 2.00"
(50.80mm)		 0.58"
(14.73mm)
17 Plug/Male 1/4" 3/8" Hose Barb Steel 6 - - 2.22"
(56.39mm)		 0.50"
(12.70mm)
17P Plug/Male 1/4" 3/8" Push-On Hose Barb Steel 6, 6A - - 2.06"
(52.32mm)		 0.50"
(12.70mm)
18E Plug/Male 1/4" 5/16" Hose Barb Steel 6 - - 2.22"
(56.39mm)		 0.50"
(12.70mm)
B17 Plug/Male 1/4" 3/8" Hose Barb Brass 6 - - 2.22"
(56.39mm)		 0.50"
(12.70mm)
***With Bleeder Ball Check - Reduces Hose Whip
