190235-10S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Male Inverted Flare x -10 Reusable Hose End | Steel
190235-10S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Male Inverted Flare x -10 Reusable Hose End | Steel
190235-10S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Male Inverted Flare x -10 Reusable Hose End | Steel
190235-10S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Male Inverted Flare x -10 Reusable Hose End | Steel

190235-10S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -10 Male Inverted Flare x -10 Reusable Hose End | Steel

$231.66 - $231.66
$231.66
$231.66 - $231.66
$231.66

Aeroquip® by Danfoss

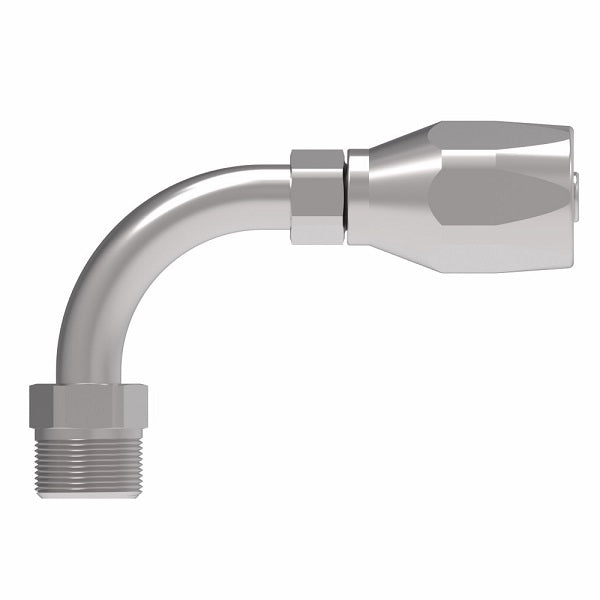

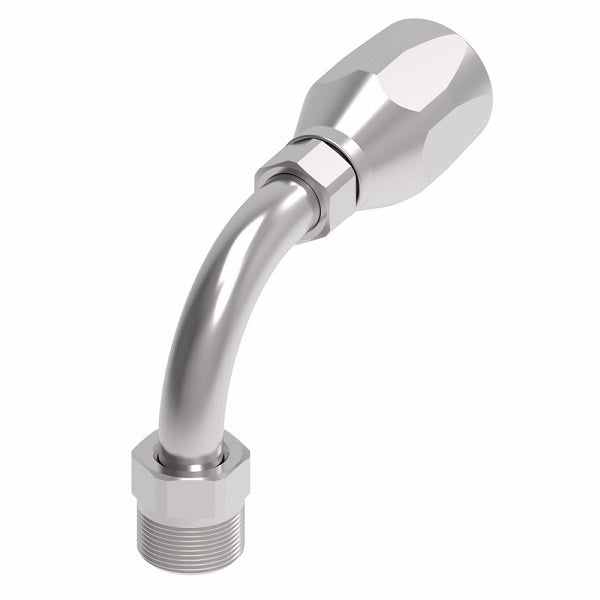

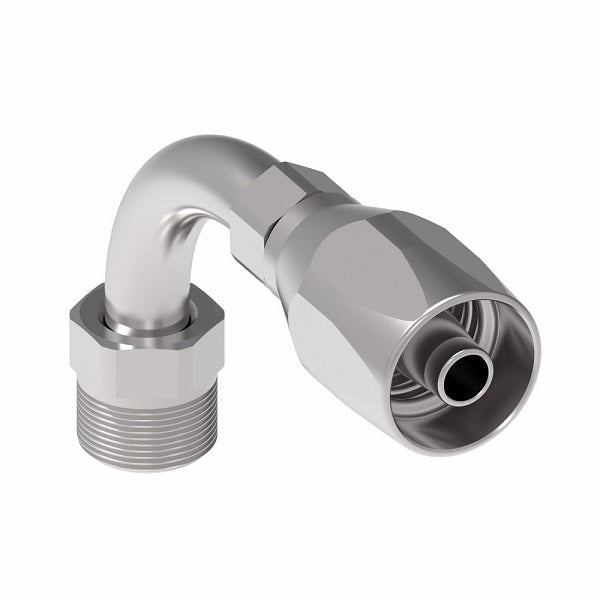

SAE 100R5 Style Reusable Hose Fitting - Male Inverted Flare Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190235-10S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male Inverted Flare, 5/8in Reusable Hose End
Material(s): Steel
Special Properties: Short Drop
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190235-4S -04 7/16-24 2.36" 1.62" 0.13" 1.69"
190235-5S -05 1/2-20 2.53" 1.75" 0.18" 1.69"
190235-5-6S -06 1/2-20 2.63" 1.73" 0.24" 1.73"
190235-6S -06 5/8-18 2.63" 1.73" 0.24" 1.73"
190235-7-6S -06 11/16-18 2.63" 1.73" 0.24" 1.73"
190235-6-8S -08 5/8-18 3.04" 1.89" 0.28" 1.73"
190235-8S -08 3/4-18 3.04" 1.89" 0.36" 1.75"
190235-10S -10 7/8-18 3.44" 2.15" 0.46" 2.22"
