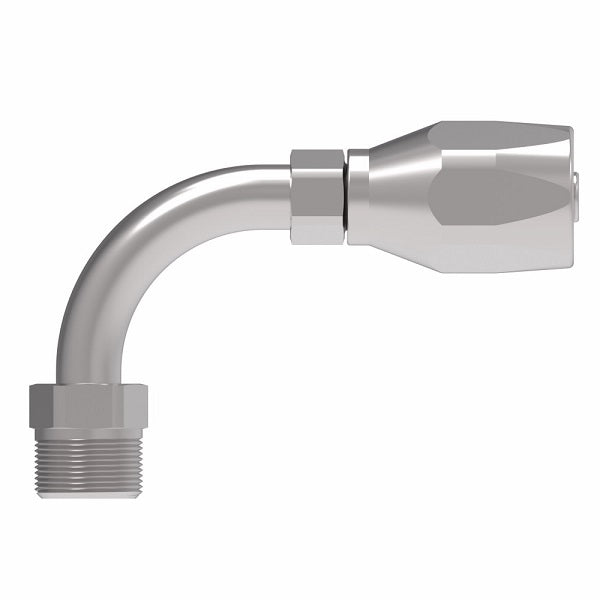

190235-5S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -05 Male Inverted Flare x -05 Reusable Hose End | Steel
190235-5S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -05 Male Inverted Flare x -05 Reusable Hose End | Steel
190235-5S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -05 Male Inverted Flare x -05 Reusable Hose End | Steel
190235-5S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -05 Male Inverted Flare x -05 Reusable Hose End | Steel

190235-5S Aeroquip by Danfoss | Male Inverted Flare Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -05 Male Inverted Flare x -05 Reusable Hose End | Steel

$28.94 - $28.94
$28.94
$28.94 - $28.94
$28.94

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male Inverted Flare Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190235-5S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/16in Male Inverted Flare, 5/16in Reusable Hose End
Material(s): Steel
Special Properties: Short Drop
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190235-4S -04 7/16-24 2.36" 1.62" 0.13" 1.69"
190235-5S -05 1/2-20 2.53" 1.75" 0.18" 1.69"
190235-5-6S -06 1/2-20 2.63" 1.73" 0.24" 1.73"
190235-6S -06 5/8-18 2.63" 1.73" 0.24" 1.73"
190235-7-6S -06 11/16-18 2.63" 1.73" 0.24" 1.73"
190235-6-8S -08 5/8-18 3.04" 1.89" 0.28" 1.73"
190235-8S -08 3/4-18 3.04" 1.89" 0.36" 1.75"
190235-10S -10 7/8-18 3.44" 2.15" 0.46" 2.22"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
