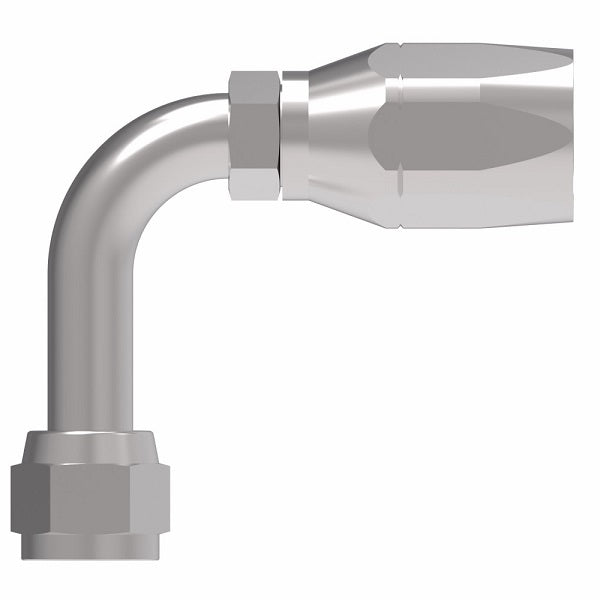

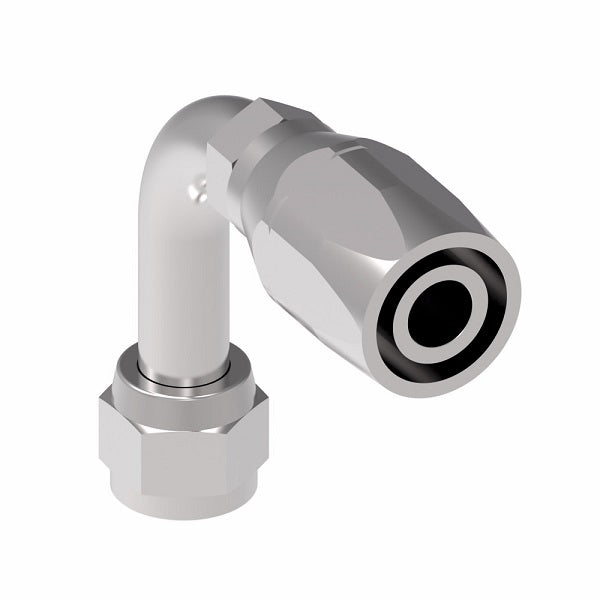

190260-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

190260-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel | Pack of 10

$777.20 - $777.20

$777.20

$777.20 - $777.20

$777.20

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 190260-12S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Long Drop, Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190260-6S	-06	9/16-18	2.13"	1.23"	0.24"	2.18"
190260-12S	-12	1-1/16-12	3.74"	2.17"	0.55"	3.73"
190260-16S	-16	1-5/16-12	3.55"	2.28"	0.82"	4.58"
190260-20S	-20	1-5/8-12	4.02"	2.65"	1.05"	5.53"
