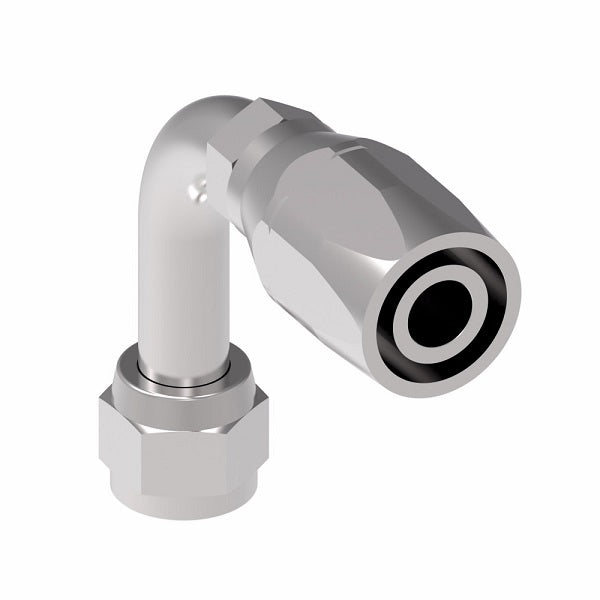

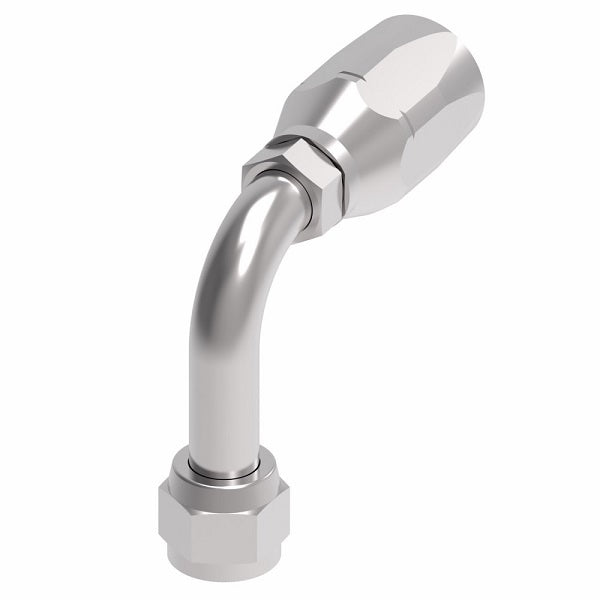

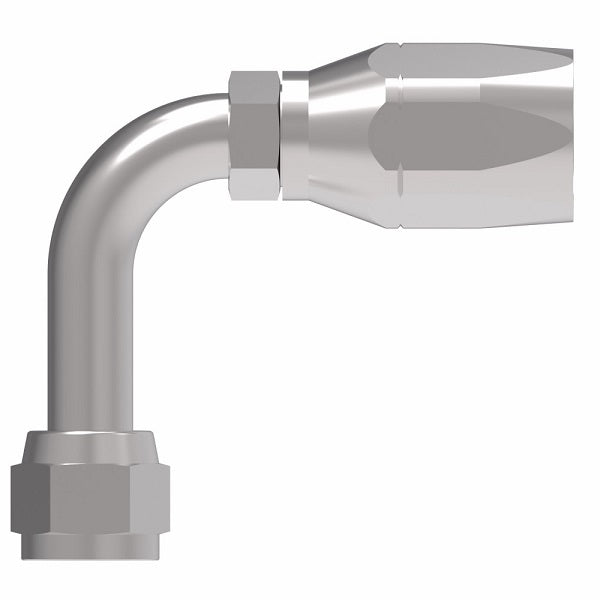

190263-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
190263-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
190263-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
190263-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

190263-12S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$272.10 - $272.10
$272.10
$272.10 - $272.10
$272.10

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190263-12S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ H
190263-4S -04 7/16-20 2.40" 1.17" 0.17" 1.80"
190263-6S -06 9/16-18 2.72" 1.25" 0.31" 2.18"
190263-8S -08 3/4-16 3.15" 1.64" 0.39" 2.43"
190263-10S -10 7/8-14 3.50" 1.94" 0.50" 2.57"
190263-12S -12 1-1/16-12 4.11" 2.24" 0.61" 3.73"
190263-16S -16 1-5/16-12 4.84" 2.78" 0.82" 4.58"
