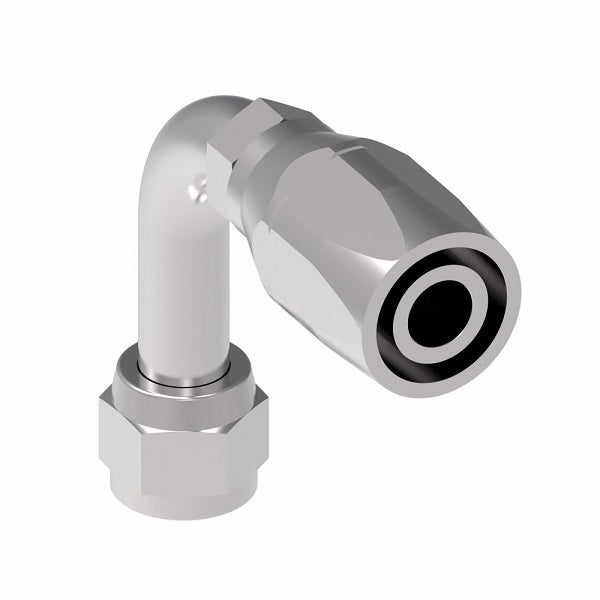

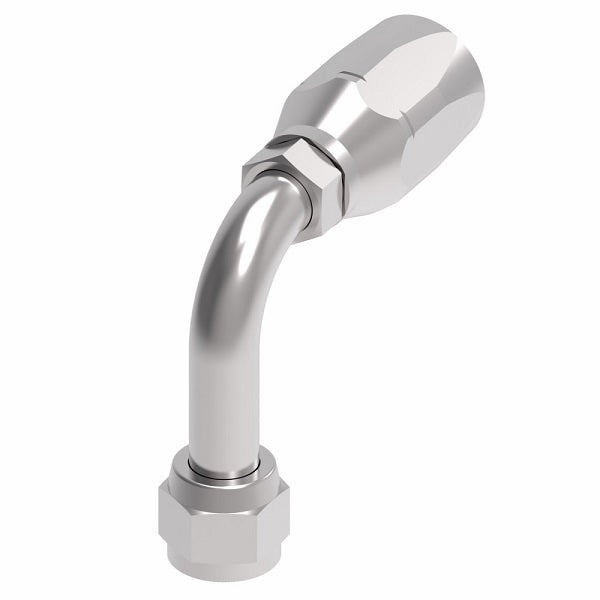

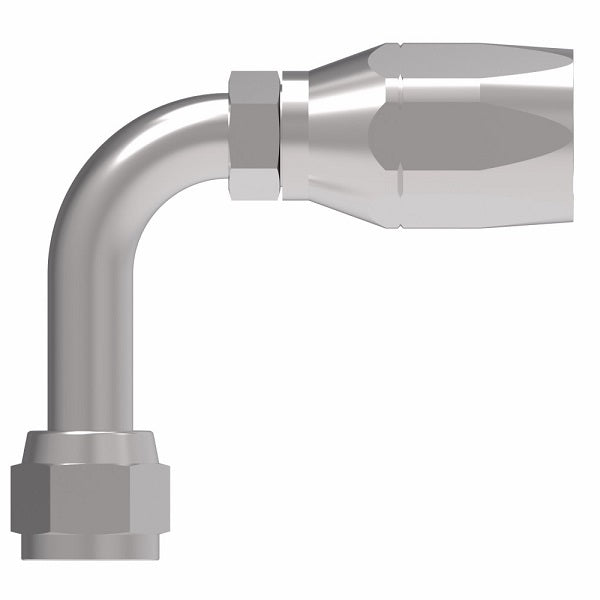

190263-8S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

190263-8S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

Name: 190263-8S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190263-8S Danfoss
Price: 69.68 USD
Availability: InStock

$69.68 - $69.68

$69.68

$69.68 - $69.68

$69.68

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190263-8S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190263-4S	-04	7/16-20	2.40"	1.17"	0.17"	1.80"
190263-6S	-06	9/16-18	2.72"	1.25"	0.31"	2.18"
190263-8S	-08	3/4-16	3.15"	1.64"	0.39"	2.43"
190263-10S	-10	7/8-14	3.50"	1.94"	0.50"	2.57"
190263-12S	-12	1-1/16-12	4.11"	2.24"	0.61"	3.73"
190263-16S	-16	1-5/16-12	4.84"	2.78"	0.82"	4.58"
