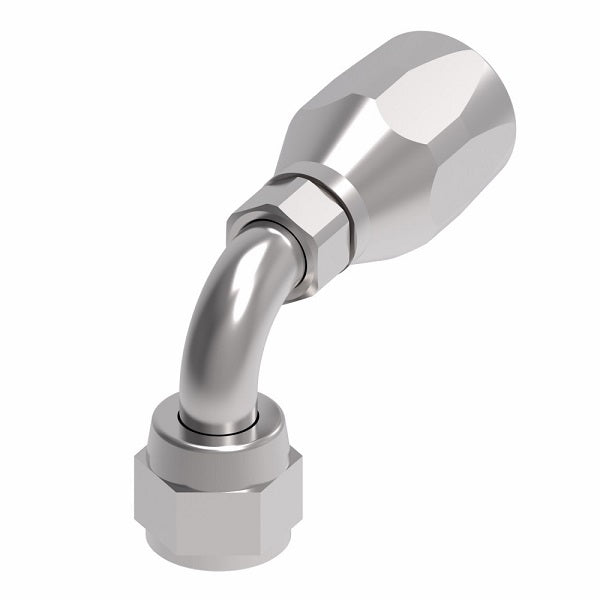

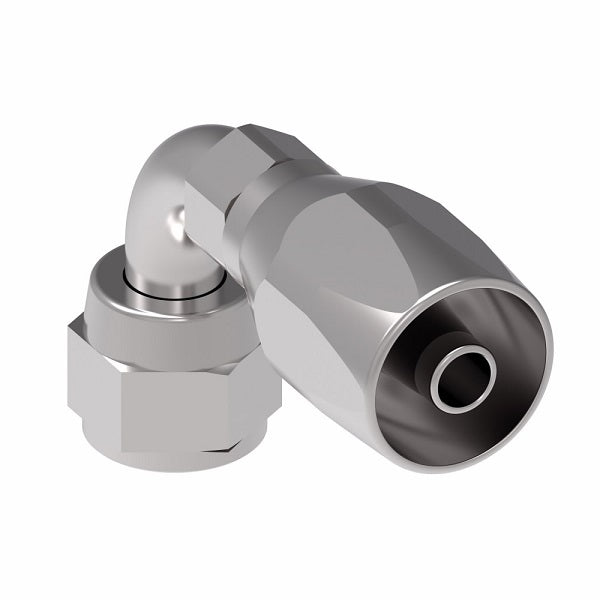

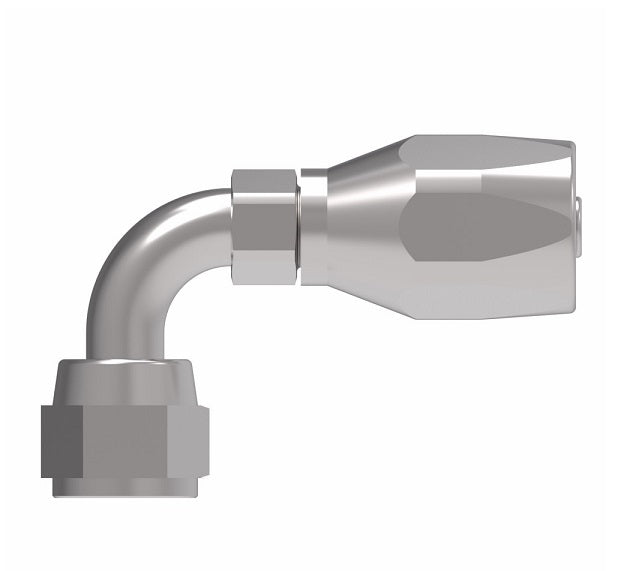

190264-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
190264-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
190264-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
190264-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

190264-6S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

$55.10 - $55.10
$55.10
$55.10 - $55.10
$55.10

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190264-6S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ H
190264-4S -04 7/16-20 2.40" 1.17" 0.17" 0.68"
190264-6S -06 9/16-18 2.72" 1.25" 0.31" 0.85"
190264-8S -08 3/4-16 3.02" 1.52" 0.39" 1.09"
190264-10-8S -08 7/8-14 3.15" 1.64" 0.39" 1.23"
190264-10S -10 7/8-14 3.24" 1.69" 0.50" 1.23"
190264-12S -12 1-1/16-12 4.11" 2.24" 0.61" 1.82"
190264-16S -16 1-5/16-12 4.84" 2.79" 0.82" 2.39"
