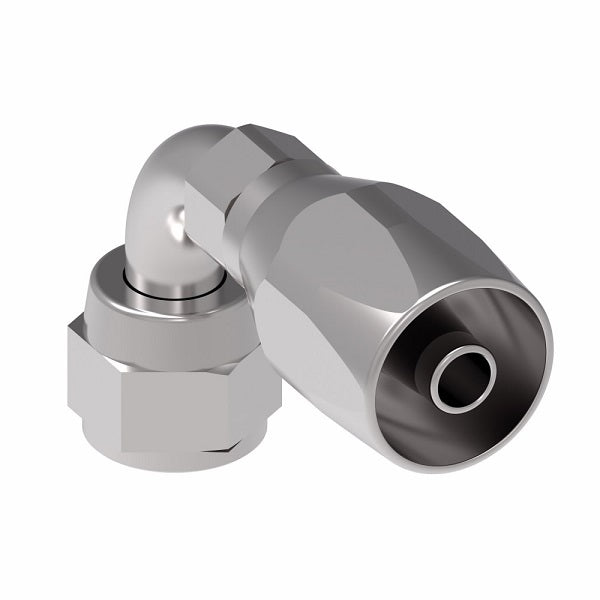

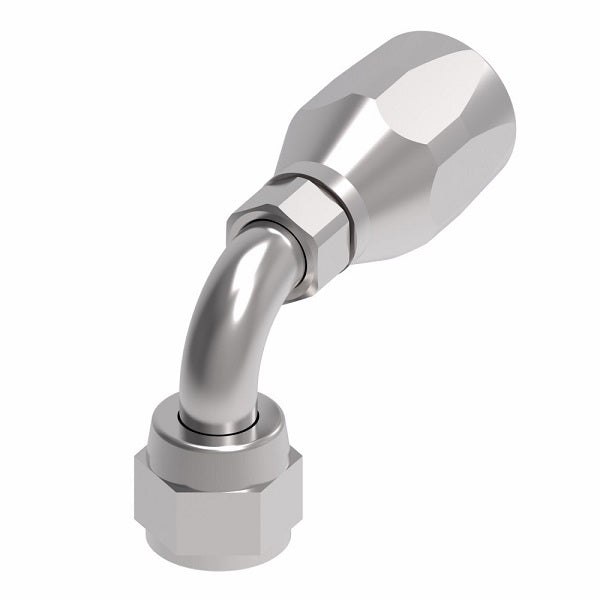

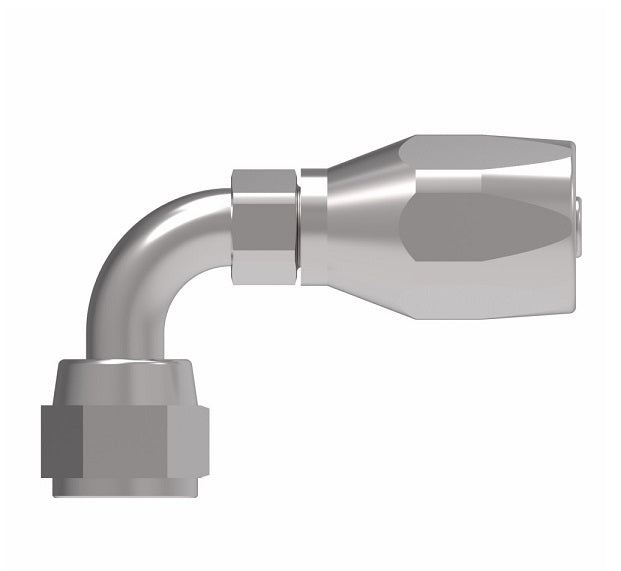

190264-8S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

190264-8S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$631.60 - $631.60

$631.60

$631.60 - $631.60

$631.60

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190264-8S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Short Drop
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190264-4S	-04	7/16-20	2.40"	1.17"	0.17"	0.68"
190264-6S	-06	9/16-18	2.72"	1.25"	0.31"	0.85"
190264-8S	-08	3/4-16	3.02"	1.52"	0.39"	1.09"
190264-10-8S	-08	7/8-14	3.15"	1.64"	0.39"	1.23"
190264-10S	-10	7/8-14	3.24"	1.69"	0.50"	1.23"
190264-12S	-12	1-1/16-12	4.11"	2.24"	0.61"	1.82"
190264-16S	-16	1-5/16-12	4.84"	2.79"	0.82"	2.39"
