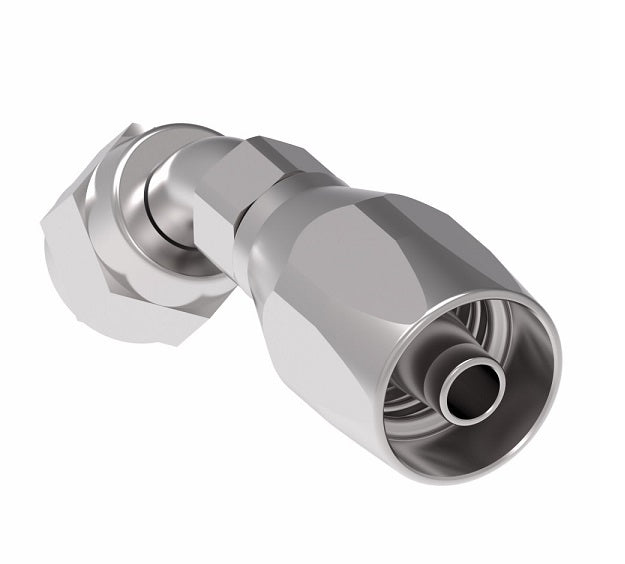

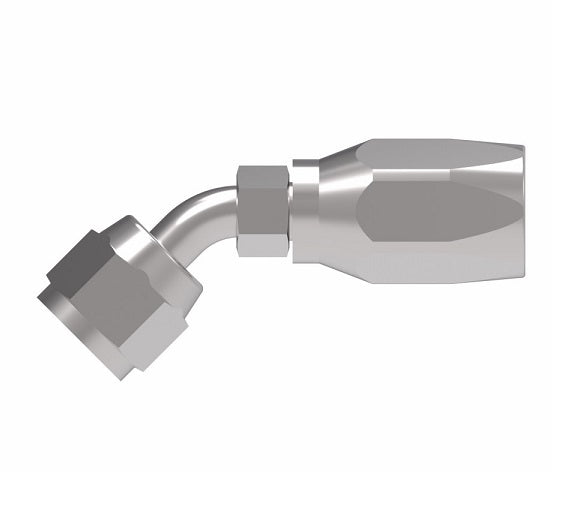

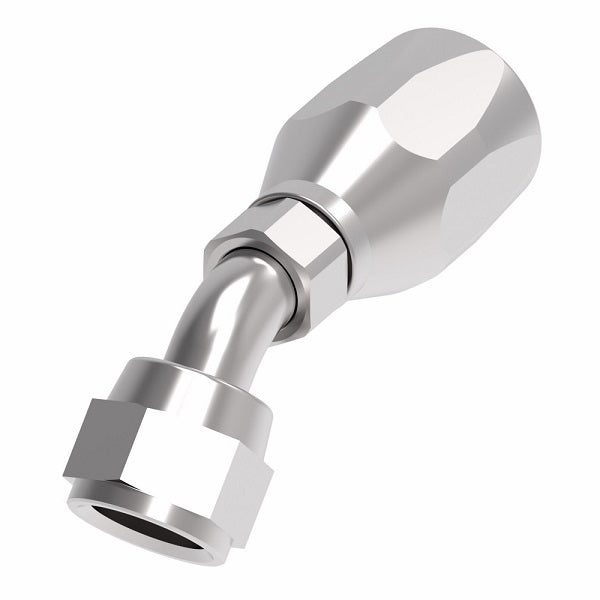

190265-12S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

190265-12S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$64.40 - $64.40
$64.40
$64.40 - $64.40
$64.40

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190265-12S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190265-6S -06 9/16-18 2.23" 1.33" 0.24" 0.39"
190265-12S -12 1-1/16-12 3.78" 2.21" 0.55" 0.78"
190265-16S -16 1-5/16-12 3.74" 2.47" 0.82" 1.07"
190265-20S -20 1-1/8-12 4.21" 2.85" 1.05" 1.22"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
