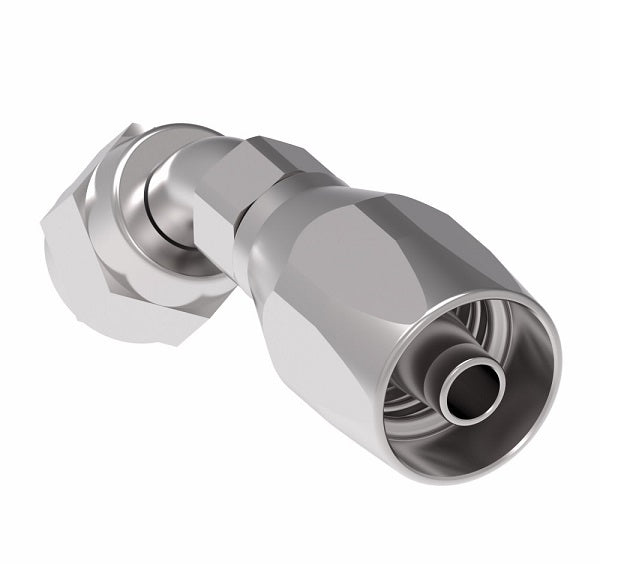

190265-6S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

190265-6S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

$33.64 - $33.64
$33.64
$33.64 - $33.64
$33.64

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190265-6S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190265-6S -06 9/16-18 2.23" 1.33" 0.24" 0.39"
190265-12S -12 1-1/16-12 3.78" 2.21" 0.55" 0.78"
190265-16S -16 1-5/16-12 3.74" 2.47" 0.82" 1.07"
190265-20S -20 1-1/8-12 4.21" 2.85" 1.05" 1.22"
