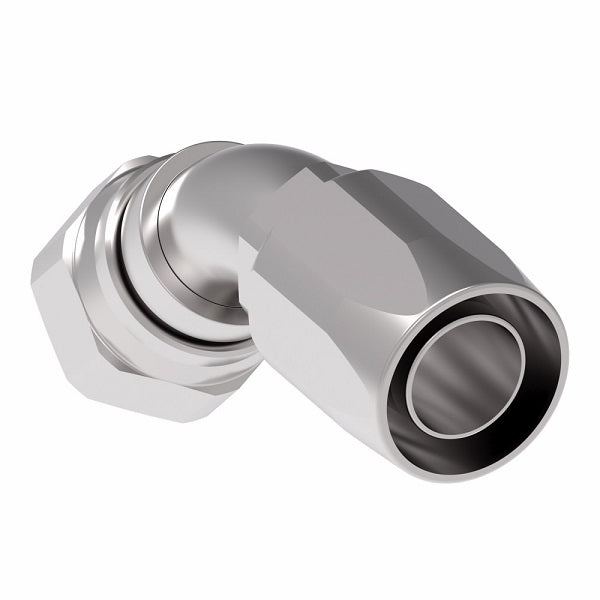

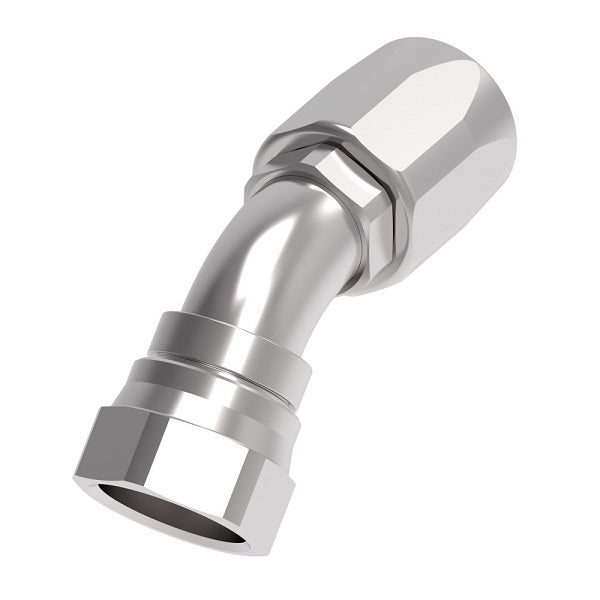

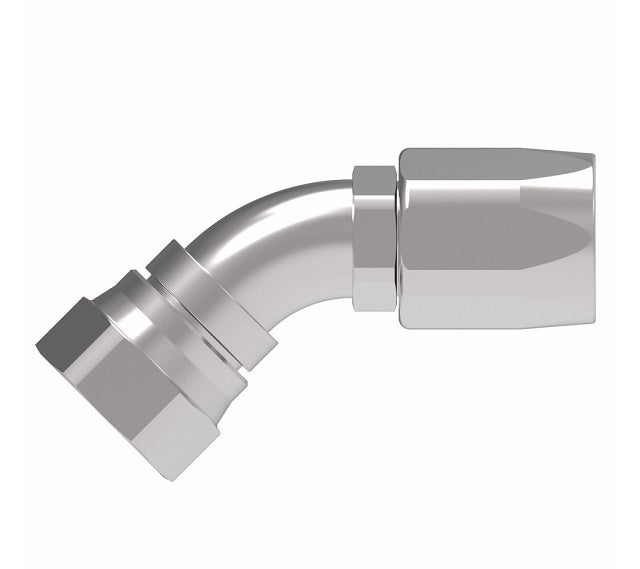

190265-16S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

190265-16S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

Name: 190265-16S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190265-16S Danfoss
Price: 98.1 USD
Availability: InStock

$98.10 - $98.10

$98.10

$98.10 - $98.10

$98.10

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190265-16S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female JIC, 1in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190265-6S	-06	9/16-18	2.23"	1.33"	0.24"	0.39"
190265-12S	-12	1-1/16-12	3.78"	2.21"	0.55"	0.78"
190265-16S	-16	1-5/16-12	3.74"	2.47"	0.82"	1.07"
190265-20S	-20	1-1/8-12	4.21"	2.85"	1.05"	1.22"
