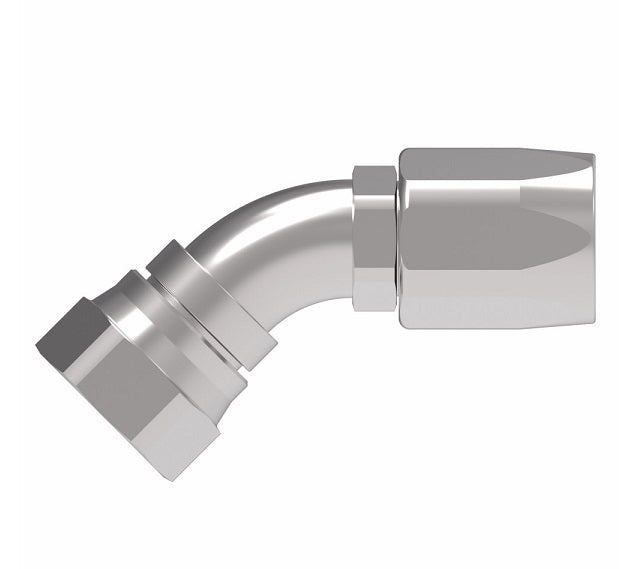

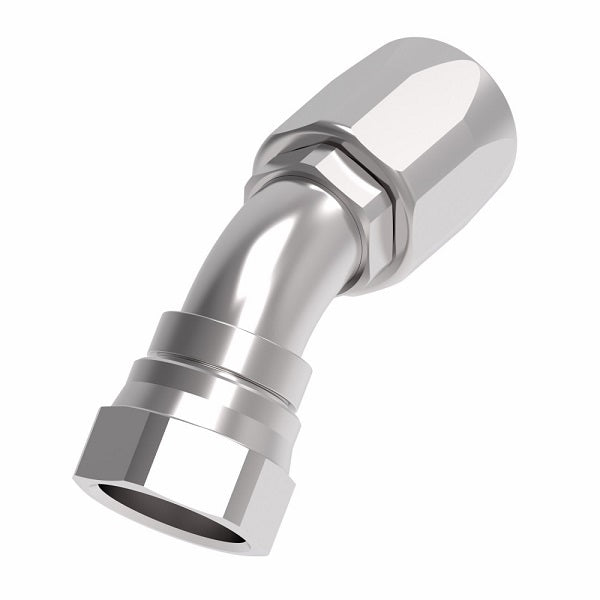

190265-20S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

190265-20S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Reusable Hose Fitting | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

$159.90 - $159.90
$159.90
$159.90 - $159.90
$159.90

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190265-20S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190265-6S -06 9/16-18 2.23" 1.33" 0.24" 0.39"
190265-12S -12 1-1/16-12 3.78" 2.21" 0.55" 0.78"
190265-16S -16 1-5/16-12 3.74" 2.47" 0.82" 1.07"
190265-20S -20 1-1/8-12 4.21" 2.85" 1.05" 1.22"
