Aeroquip® by Danfoss

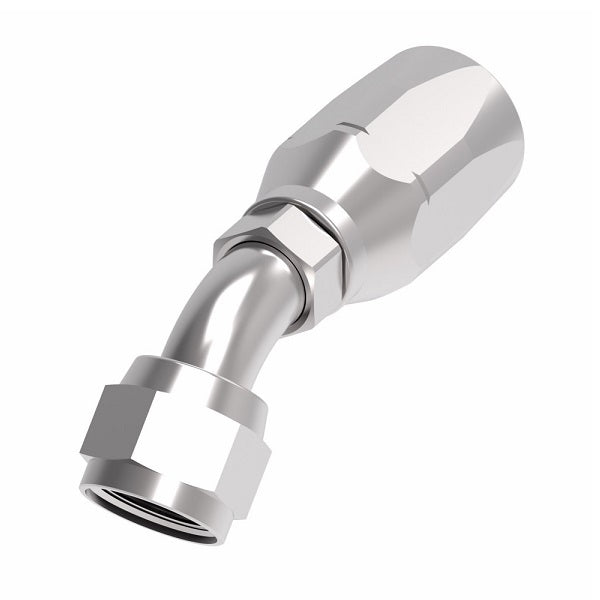

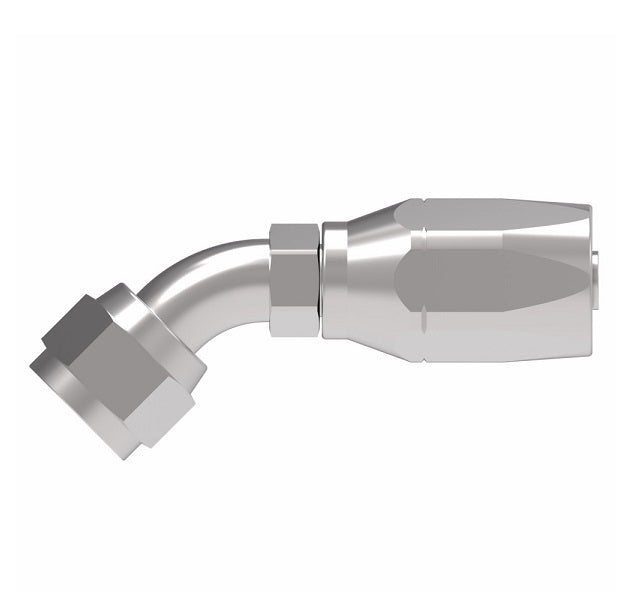

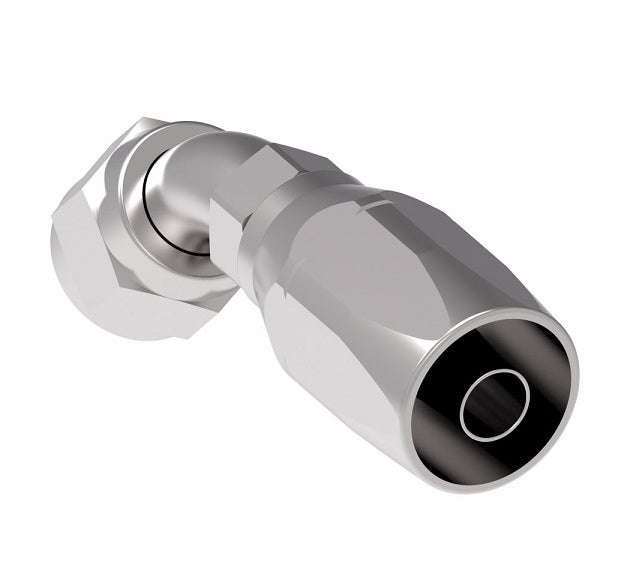

100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 190287-8S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190287-4S	-04	7/16-20	2.51"	1.28"	0.17"	0.33"
190287-8S	-08	3/4-16	3.26"	1.75"	0.39"	0.55"
190287-10S	-10	7/8-14	3.54"	1.99"	0.50"	0.64"
190287-12S	-12	1-1/16-12	4.15"	2.28"	0.61"	0.78"
190287-16S	-16	1-5/16-12	5.03"	2.97"	0.82"	1.07"
