190933-16S Aeroquip by Danfoss | Female 37° JIC Swivel Spiral Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
190933-16S Aeroquip by Danfoss | Female 37° JIC Swivel Spiral Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel | Pack of 10
190933-16S Aeroquip by Danfoss | Female 37° JIC Swivel Spiral Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

190933-16S Aeroquip by Danfoss | Female 37° JIC Swivel Spiral Skive Style Reusable Hose Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$935.20 - $935.20
$935.20
$935.20 - $935.20
$935.20

Aeroquip® by Danfoss

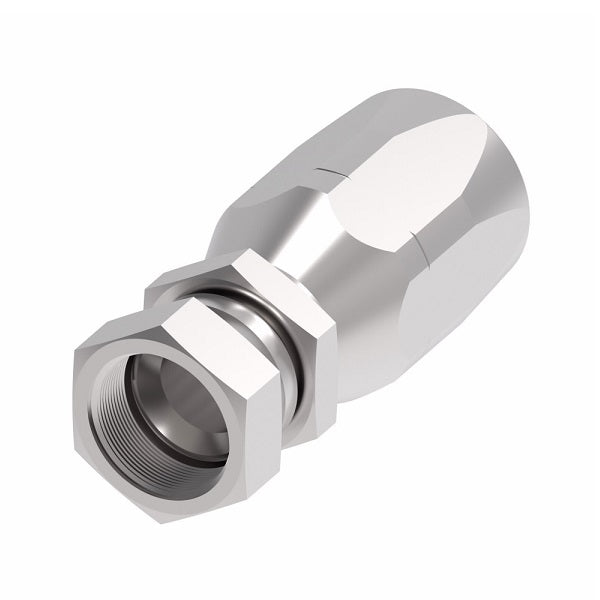

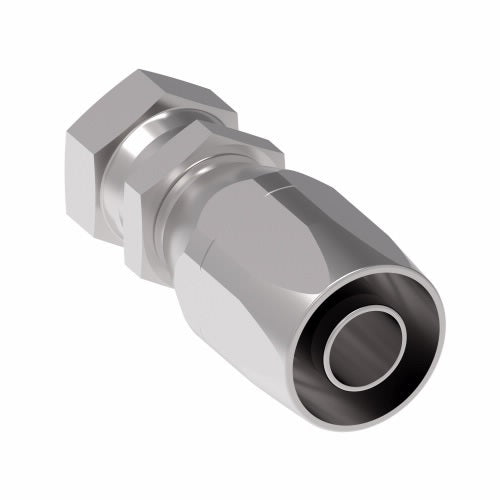

Spiral Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190933-16S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 1in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH493 Series  |   FC736 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ
190933-6-6S -06 9/16-18 3.30" 1.68" 0.30"
190933-8-8S -08 3/4-16 3.20" 1.68" 0.39"
190933-12S -12 1-1/16-12 3.86" 1.99" 0.61"
190933-16S -16 1-5/16-12 4.48" 2.43" 0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
