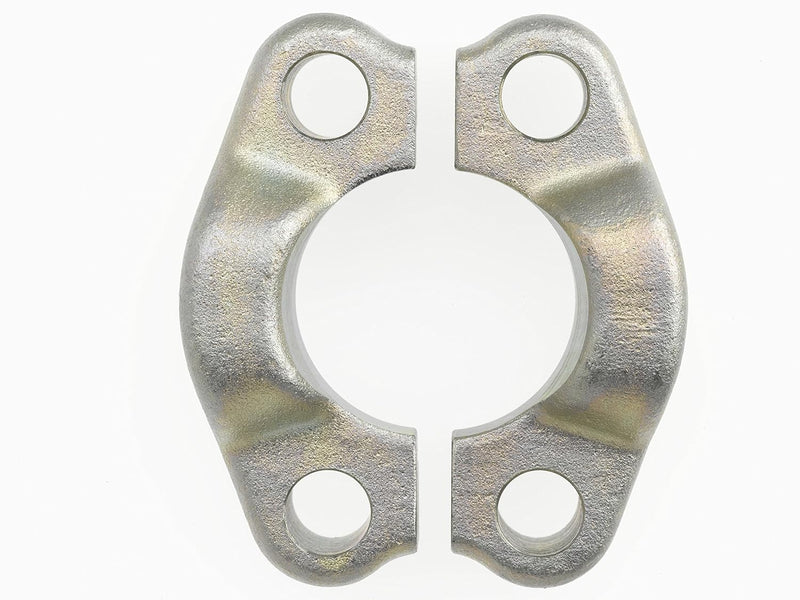

1952-16-SS by Brennan Inc. | -16 Split Flange Halves Pair | Code 62 | Stainless Steel

1952-16-SS by Brennan Inc. | -16 Split Flange Halves Pair | Code 62 | Stainless Steel

$71.37 - $71.37
$71.37
$90.56
$90.56 - $90.56
$90.56

Brennan Inc.
Flange Fittings: 1952 - Split Flange Halves Pair (Code 62)
Specifications for Variant SKU: 1952-16-SS Brennan
Ends Configuration: 1in Code 62 Flange
Material(s): Stainless Steel
Part Number Material FlangeSize A±.030 B±.030 D±.010 E±.030 F±.016 G±.010 H±.010 J±.005 K±.005
1952-12 Steel 3/4" 1.140" 2.810" 2.000" 1.120" 0.750" 1.660" 1.280" 0.330" 0.410"
1952-16 Steel 1" 1.330" 3.190" 2.250" 1.310" 0.940" 1.910" 1.530" 0.360" 0.470"
1951-20 Steel 1-1/4" 1.480" 3.750" 2.630" 1.500" 1.060" 2.160" 1.750" 0.390" 0.530"
1952-24 Steel 1-1/2" 1.830" 4.440" 3.130" 1.690" 1.190" 2.530" 2.030" 0.480" 0.660"
1952-32 Steel 2" 2.200" 5.250" 3.810" 2.060" 1.440" 3.160" 2.660" 0.480" 0.780"

1952-12-SS Steel 3/4" 1.140" 2.810" 2.000" 1.120" 0.750" 1.660" 1.280" 0.330" 0.410"
1952-16-SS Steel 1" 1.330" 3.190" 2.250" 1.310" 0.940" 1.910" 1.530" 0.360" 0.470"
1952-24-SS Steel 1-1/2" 1.830" 4.440" 3.130" 1.690" 1.190" 2.530" 2.030" 0.480" 0.660"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
