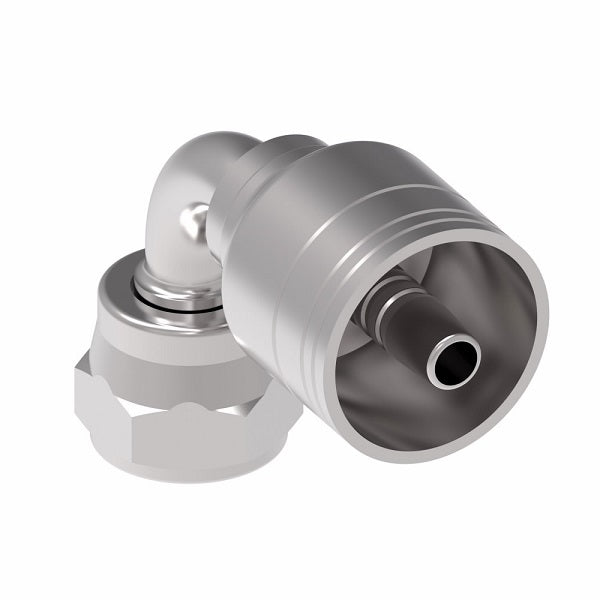

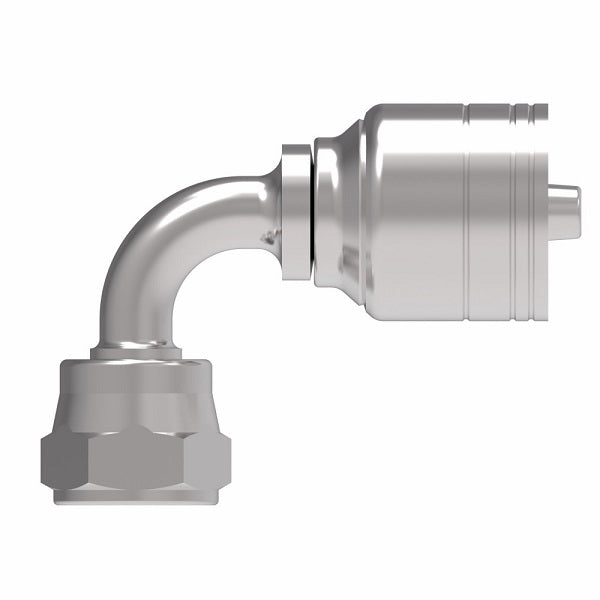

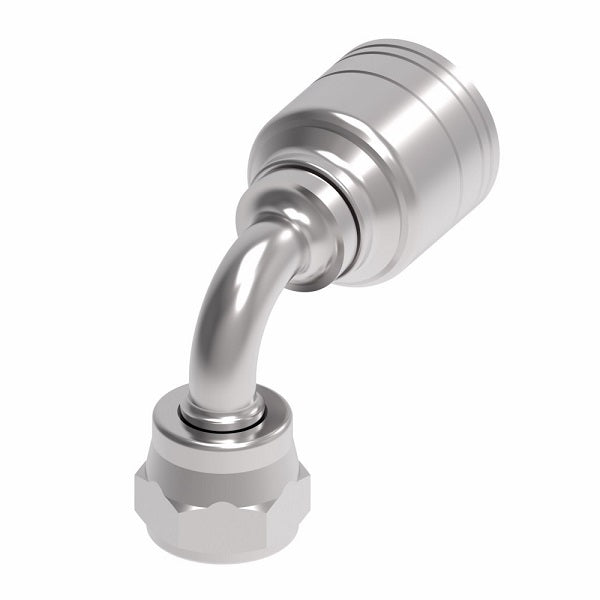

1A10BFB8 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female swivel 90° elbow (BFB) Crimp Fitting | -10 Female BSPP Swivel x -08 Hose Barb | Steel
1A10BFB8 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 90° Elbow (BFB) Crimp Fitting | -10 Female BSPP Swivel x -08 Hose Barb | Steel
1A10BFB8 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 90° Elbow (BFB) Crimp Fitting | -10 Female BSPP Swivel x -08 Hose Barb | Steel
1A10BFB8 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female swivel 90° elbow (BFB) Crimp Fitting | -10 Female BSPP Swivel x -08 Hose Barb | Steel

1A10BFB8 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 90° Elbow (BFB) Crimp Fitting | -10 Female BSPP Swivel x -08 Hose Barb | Steel

$79.13 - $79.13
$79.13
$79.13 - $79.13
$79.13

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BFB) - 90° Elbow

(Formerly Eaton Aeroquip)

The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.
Specifications for Variant SKU: 1A10BFB8 Danfoss
Shape (Orientation): 90 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash H Hex 1
1A4BFB4 G 1/4 -04 1.80" 0.88" 0.16" 0.98" 0.67"
1A6BFB6 G 3/8 -06 2.32" 1.32" 0.26" 1.38" 0.87"
1A8BFB6 G 1/2 -06 2.98" 1.98" 0.26" 1.88" 1.06"
1A8BFB8 G 1/2 -08 2.52" 1.35" 0.38" 1.48" 1.06"
1A10BFB8 G 5/8 -08 3.57" 2.40" 0.38" 2.22" 1.06"
1A10BFB10 G 5/8 -10 3.57" 1.41" 0.50" 2.22" 1.06"
1A12BFB12 G 3/4 -12 3.24" 2.05" 0.61" 1.87" 1.26"
1A16BFB16 G 1 -16 4.65" 3.30" 0.81" 2.81" 1.61"
1A20BFB20 G 1-1/4 -20 5.75" 4.02" 1.05" 3.25" 1.97"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
