Aeroquip® by Danfoss

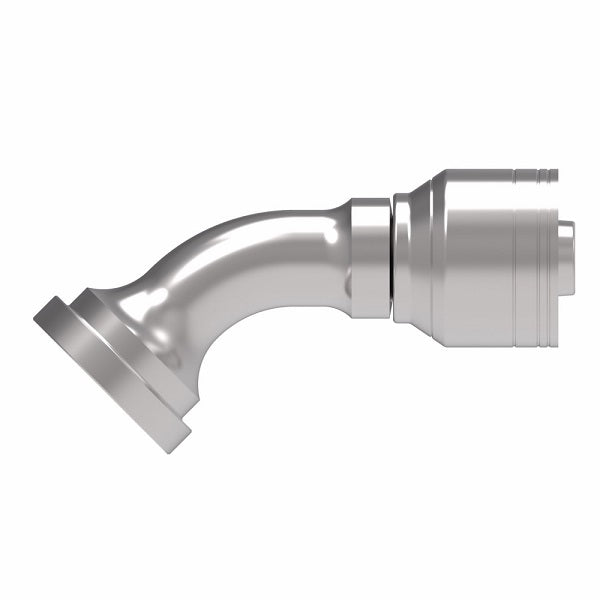

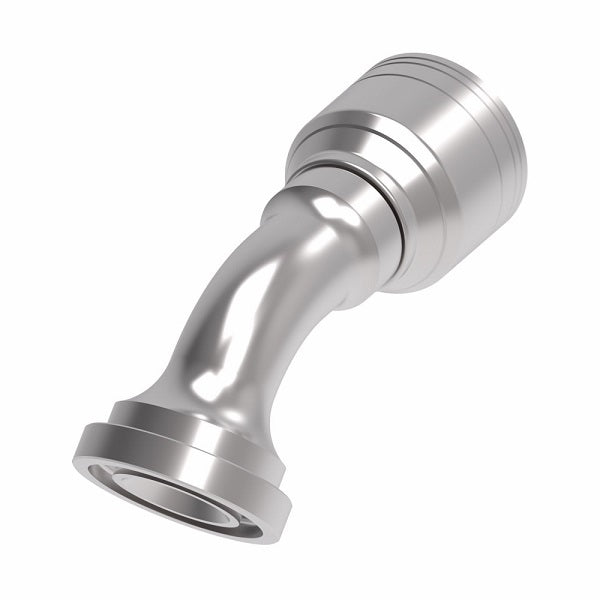

1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FLA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A12FLA10 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Code 61 Flange, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Zinc-Nickel Plated Steel Part Number	Thd. Flange Head Diameter K&Oslash	Hose Size	A	D	E&Oslash	H
1A8FLA8	-	1.19"	-08	3.11"	1.94"	0.37"	0.78"
1A12FLA8	-	1.50"	-08	3.64"	2.47"	0.37"	1.00"
1A12FLA10	-	1.50"	-10	3.68"	2.53"	0.46"	1.00"
1A12FLA12	-	1.50"	-12	3.67"	2.48"	0.58"	1.01"
1A16FLA12	-	1.75"	-12	4.16"	2.97"	0.58"	1.06"
1A16FLA16	-	1.75"	-16	4.35"	3.00"	0.76"	1.06"
1A20FLA16	-	2.00"	-16	4.81"	3.45"	0.76"	1.15"
1A16FLA20	-	1.75"	-20	4.80"	3.06"	0.76"	1.06"
1A20FLA20	-	2.00"	-20	5.28"	3.55"	1.01"	1.18"
1A24FLA20	-	2.37"	-20	5.94"	4.20"	1.01"	1.41"
1A24FLA24	-	2.37"	-24	6.07"	4.25"	1.26"	1.41"
1A32FLA24	-	2.81"	-24	6.07"	4.25"	1.26"	1.41"
1A24FLA32	-	2.37"	-32	6.27"	4.29"	1.26"	1.41"
1A32FLA32	-	2.81"	-32	7.49"	5.52"	1.75"	2.00"
