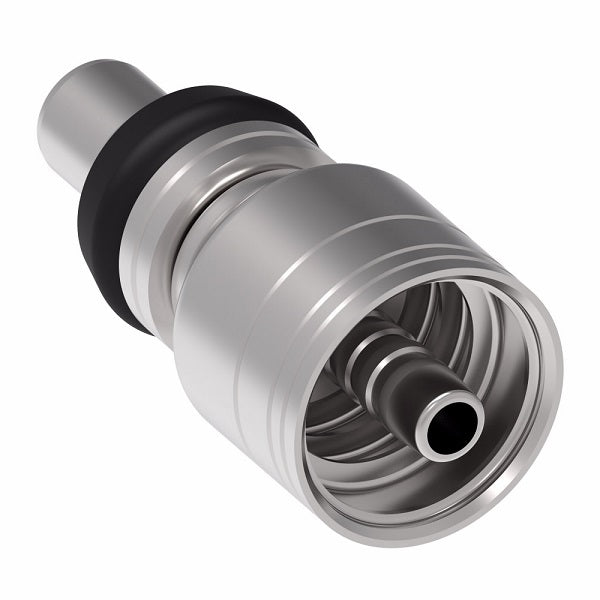

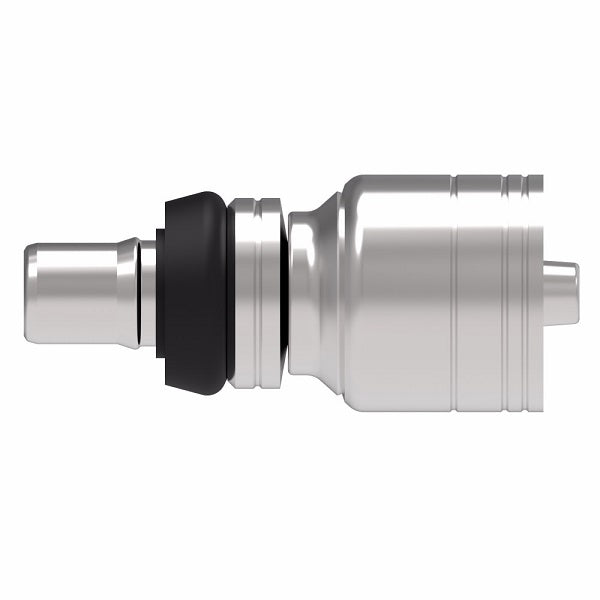

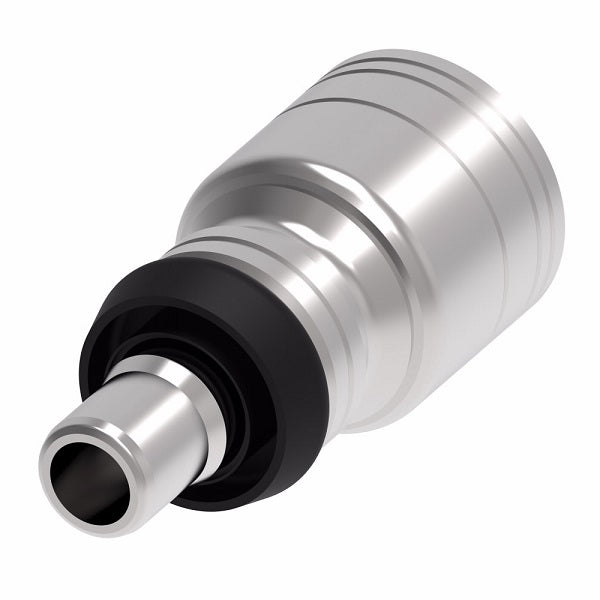

1A12MC12 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TTC Crimp Fitting | -12 Male STC x -12 Hose Barb | Steel

1A12MC12 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MC) | TTC Crimp Fitting | -12 Male STC x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$225.60 - $225.60

$225.60

$225.60 - $225.60

$225.60

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - TTC Crimp Fitting - Male STC (Snap to Connect) Hose End (MC) - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A12MC12 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male STC, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC414 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC693 Series \| FC735 Series \| FC839B Series \| FC849 Series \| FC849B Series \| GH194 Series \| GH663 Series \| GH681-6 Series \| GH683 Series \| GH781 Series \| GH793 Series

Applications:
Hydraulic Power Steering Auxiliary Hydraulics Power Brakes Turbochargers Fuel Injection Systems Hydraulic Work Circuits Air Conditioning, Refrigeration and Truck and Bus Refrigerant Supply Lines Compressor Discharge Power Steering Oil Cooler Pneumatic Brakes Air Supply Lines Cooling Transmission Oil Coolers Heat Exchangers Equipment Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
Positive round-wire style latching mechanism. Swivels for installation (in absence of pressure). Low profile; compact design. Elastomeric o-ring seal. Capable of direct porting into valve blocks or manifolds. Dual purpose dust seal/release sleeve. Simple stamped release tool for disconnecting.
Benefits:
Fast reliable one-hand connections requiring no assembly tools. Eliminates cross-threading, over or undertorquing, and hose twisting. Installs easily in confined areas. Virtually zero leak performance per SAE J1176. Direct porting eliminates adapters to maximize cost savings. Resists external contamination. Allows easy disconnection with release tool (sold separately).
Technical Info:
Danfoss STC Connectors.PDF

>


Part Number	D1	L1	L2	STC Release Tool
1A4MC4	0.17"	1.97"	1.04"	FF90213-01-04S
1A6MC4	0.26"	2.19"	1.19"	FF90213-06
1A6MC6	-	-	-	FF90213-06
1A8MC6	0.38"	2.39"	1.39"	FF90213-08
1A8MC8	0.38"	2.61"	1.44"	FF90213-08
1A10MC10	0.50"	2.72"	1.56"	FF90213-10
1A12MC12	0.61"	2.94"	1.75"	FF90213-12
1A16MC16	0.82"	3.30"	1.94"	FF90213-01-16S
1A16MC20	-	3.60"	-	FF90213-01-16S
