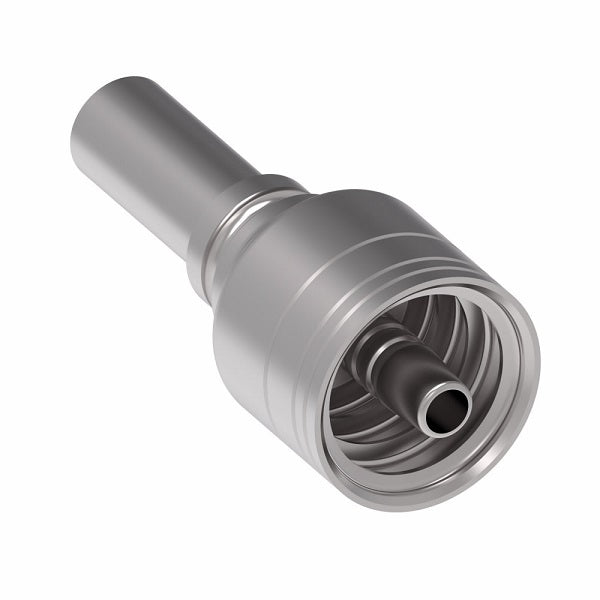

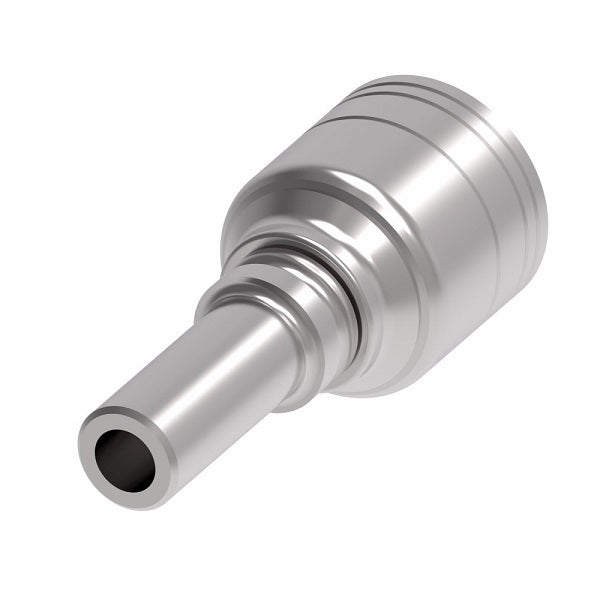

1A16LM8 Aeroquip by Danfoss | Metric Standpipe Tube (LM) TTC Crimp Fitting | -16 Tube OD x -08 Hose Barb | Steel

Original price $47.02 - Original price $47.02
Original price
$47.02
$47.02 - $47.02
Current price $47.02

Aeroquip® by Danfoss
TTC Crimp Fitting - Metric Standpipe Tube (LM) - Straight

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1A16LM8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Tube Stub, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 3130 Series  |   3740 Series  |   3R80 Series  |   3E80 Series  |   2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639/FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849/FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series  |   EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Warning:
  • TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Steel
Part Number
Tube O.D Hose Dash
Size
A Hose Cut-OffFactor (D) E&Oslash B
1A8LM4 -08 -04 2.22" 1.30" 0.16" 0.91"
1A10LM4 -10 -04 2.22" 1.30" 0.17" 0.91"
1A10LM6 -10 -06 2.34" 1.35" 0.26" 0.91"
1A12LM6 -12 -06 2.38" 1.38" 0.26" 0.95"
1A15LM8 -15 -08 2.63" 1.46" 0.38" 0.98"
1A16LM8 -16 -08 2.68" 1.51" 0.38" 1.02"
1A18LM10 -08 -10 - - - -
1A20LM10 -20 -10 - - - -
1A22LM12 -22 -12 2.80" 1.61" 0.61" 1.10"
1A25LM12 -25 -12 2.76" 1.57" 0.61" 1.06"
1A28LM16 -28 -16 2.98" 1.63" 0.81" 1.10"
1A30LM16 -30 -16 2.99" 1.64" 0.81" 1.10"
