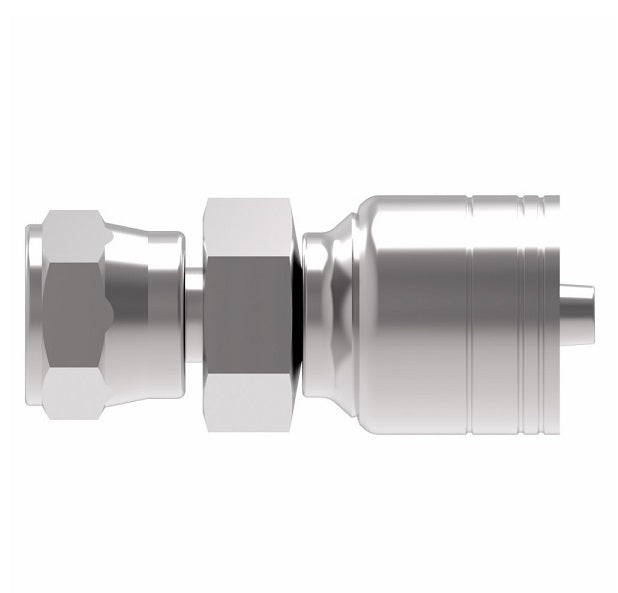

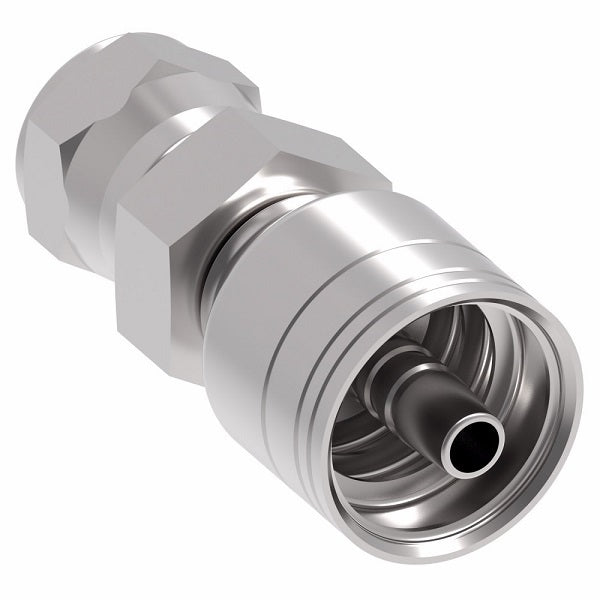

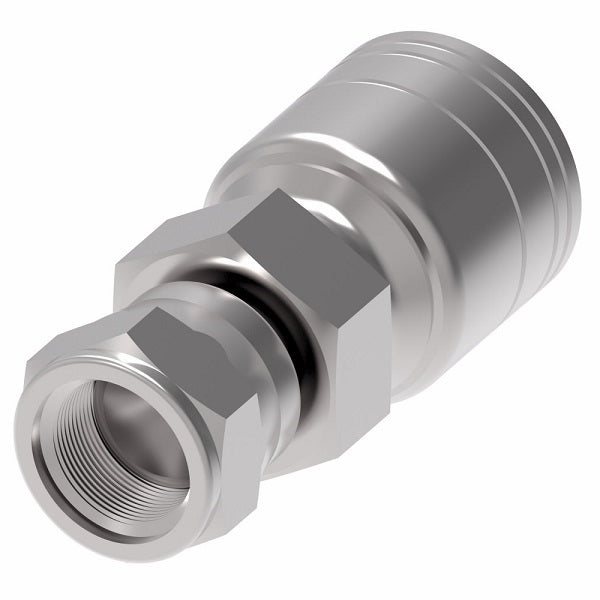

1A4JF4 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS Female Swivel (JF) Crimp Fitting | -04 Female JIS Swivel x -04 Hose Barb | Steel

1A4JF4 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS Female Swivel (JF) Crimp Fitting | -04 Female JIS Swivel x -04 Hose Barb | Steel

Name: 1A4JF4 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS Female Swivel (JF) Crimp Fitting | -04 Female JIS Swivel x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A4JF4 Danfoss
Price: 26.69 USD
Availability: InStock

$26.69 - $26.69

$26.69

$26.69 - $26.69

$26.69

Aeroquip® by Danfoss
1 & 2 Wire TTC JIS Female Swivel Crimp Fitting (JF) - Straight

(Formerly Eaton Aeroquip)

G as part of thread size is ISO Designation for parallel thread.

Specifications for Variant SKU: 1A4JF4 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female JIS, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
1A4JF4	G 7/16-20	-04	2.09"	1.08"	0.17"	0.75"	0.75"
1A6JF6	G 3/8-19	-06	2.17"	1.33"	0.26"	0.87"	0.87"
1A8JF8	G 1/2-14	-08	2.54"	1.46"	0.38"	1.06"	1.06"
1A12JF10	G 3/4-14	-10	2.78"	1.78"	0.50"	1.26"	1.42"
1A12JF12	G 3/4-14	-12	2.88"	1.70"	0.61"	1.26"	1.42"
1A16JF16	G 1-11	-16	3.29"	1.94"	0.81"	1.61"	1.61"
1A20JF20	G 1-1/4-11	-20	4.02"	2.29"	1.05"	1.97"	1.81"
