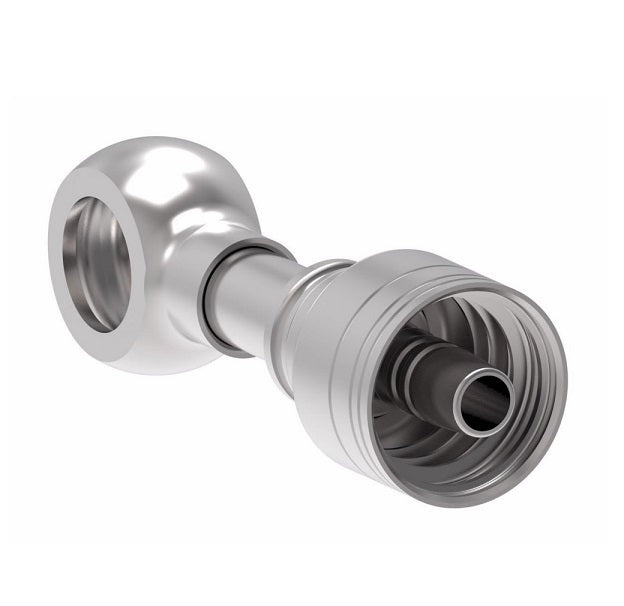

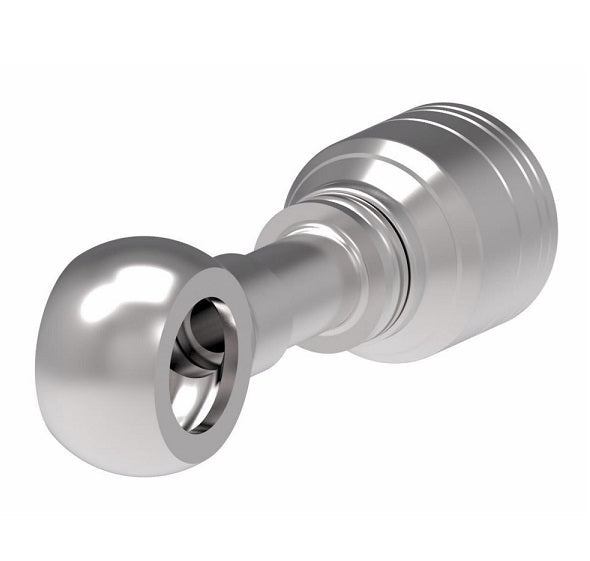

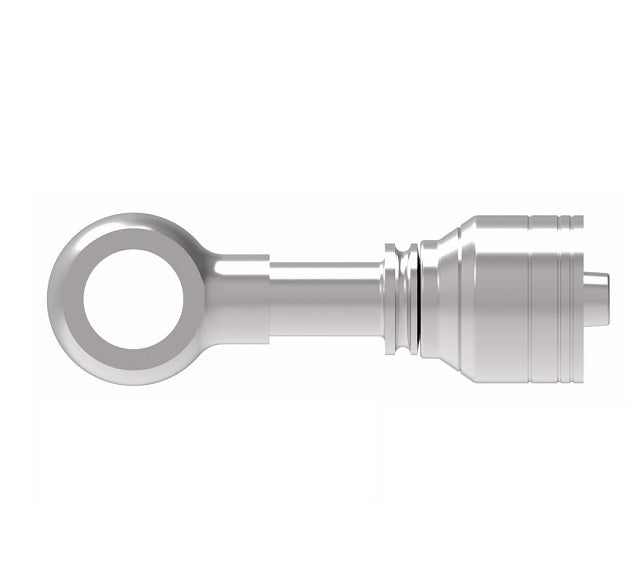

1A6BJ4 Aeroquip by Danfoss | Banjo (BJ) Crimp Fitting | -06 Banjo x -06 Hose Barb | Steel

1A6BJ4 Aeroquip by Danfoss | Banjo (BJ) Crimp Fitting | -06 Banjo x -06 Hose Barb | Steel

Name: 1A6BJ4 Aeroquip by Danfoss | Banjo (BJ) Crimp Fitting | -06 Banjo x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A6BJ4 Danfoss
Price: 36.52 USD
Availability: InStock

$36.52 - $36.52

$36.52

$36.52 - $36.52

$36.52

Aeroquip® by Danfoss
Banjo (BJ) Crimp Fitting - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A6BJ4 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female Banjo, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639/FC839B Series \| FC693 Series \| FC735 Series \| FC849/FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series \| EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Technical Info:
Crimp Fitting Socket Data.PDF

Steel Part Number	Dash Size	End Size	Compatible Hose ID	Inside Diameter	Length
1A6BJ4	-04	3/8"	0.25"	0.16"	3.45"
1A8BJ6	-06	1/2"	0.375"	0.26"	3.47"
1A10BJ6	-06	5/8"	0.375"	0.26"	3.57"
1A12BJ6	-06	3/4"	0.375"	0.26"	3.90"
1A12BJ8	-08	3/4"	0.50"	0.38"	3.99"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
